Viessmann launches new compact heat pump
Viessmann has introduced the new Vitocal 100-A air source heat pump, the most compact and affordable model in its range. Designed for ease of installation in the standard British heating system – and therefore ideal for the replacement of gas and oil boilers – the monobloc unit’s tight dimensions are perfect for homes where space is at a premium. Its A+++ rated energy efficiency will benefit end-users with low running costs, Viessmann said.
This article was originally published in issue 35 of Passive House Plus magazine. Want immediate access to all back issues and exclusive extra content? Click here to subscribe for as little as €10, or click here to receive the next issue free of charge
Viessmann UK’s managing director, Graham Russell, said: “The Vitocal 100-A is a new, environmentally-responsible heating option that is as simple to retrofit to existing homes as it is to specify for new builds. Viessmann is serious about offering a quality product in this volume sector of the market and therefore the Vitocal 100-A is price-competitive with equivalent standard monobloc air source heat pumps from other leading manufacturers.”

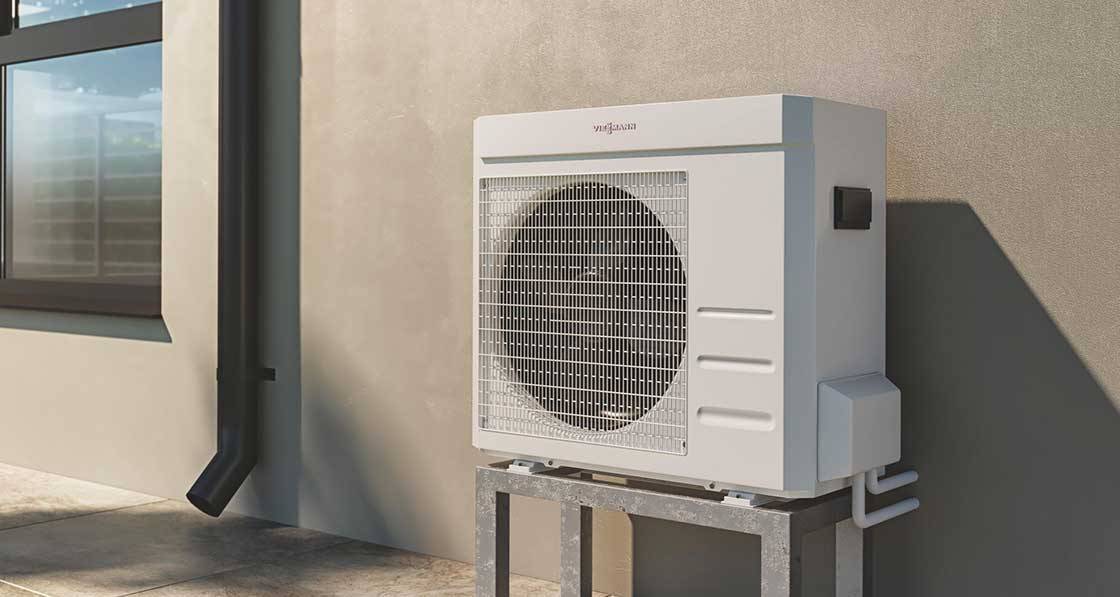

The Vitocal 100-A is a fully integrated outdoor unit that does not require a complementary indoor unit. The monobloc design means installers are not required to work on, or connect any, refrigerant- carrying parts; therefore, a refrigerant certificate is not required. R32 refrigerant, which has a lower global warming potential than other conventional refrigerants, is used. Six versions of the heat pump are available, with outputs ranging from 6 to 16 kW.
Where a greater output heating system is needed, such as in larger buildings, Vitocal 100-A units can be arranged in a cascade system of up to seven heat pumps. The heat pump can be installed to work in conjunction with an indoor-located, space-saving combi cylinder, which combines a 250-litre heating water buffer cylinder and 50-litre DHW cylinder, or with an outdoor-located plinth-style horizontal buffer store for additional space-saving inside the home. The Vitocal 100-A heat pump achieves 60 C temperature at -5 C outside temperature and has a COP (coefficient of performance) of up to 4.9 (A7/W35). The Vitocal 100-A can be operated directly with its built-in control unit, which is easy to use and has a plain text display.
The Vitocal 100-A is available now in UK merchants.
