Ireland’s largest passive house scheme shows way to nZEB
Photos: Peter Moloney, PM Photography & Leon Farrell/Photocall Ireland

Ireland’s largest passive house scheme shows way to nZEB

At a time when the industry’s under increasing pressure to deliver cost-effective, robust, low energy homes at breakneck speed, one new west Dublin project is leading the way – while picking off sustainability targets for fun.

Click here for project specs and suppliers

This article was originally published in issue 20 of Passive House Plus magazine. Want immediate access to all back issues and exclusive extra content? Click here to subscribe for as little as €10, or click here to receive the next issue free of charge

If there’s one project that could break down mainstream resistance to sustainable building it’s the 59 unit third phase of Durkan Residential’s Silken Park housing scheme in Citywest – Ireland’s largest certified passive house development to date. It’s not hyperbole to say that this scheme may with hindsight be regarded as a key turning point in the normalisation of next generation sustainable building in Ireland. A development of rapidly built, affordable, all electric passive houses set up to adapt easily to net zero energy, the scheme is also the first by a private developer to meet the Irish Green Building Council’s promising new Home Performance Index sustainability certification scheme. What makes all of this all the more remarkable – and subversive – is that the homes are being built of masonry, utilising local materials and local skills, but with a smart, methodical, lean approach to design and construction.

With homes being turned around to world class comfort, health and energy performance standards in a twelve week build schedule, Silken Park takes a disarmingly simple approach: single leaf hollow block construction sat on an insulated foundation system, the walls wrapped in a generous layer of high density Rockwool external insulation, with a sand and cement render internally acting as the airtight layer.

Way to NZEB 01

For passive house certifier Tomás O’Leary of Mosart, the fact that a well detailed wall integrating hollow blocks – which had unfairly been tarnished due to their role in an inadvisable yet widespread build-up with internal insulation – is an important breakthrough. “It basically proves that it’s not the materials you use – it’s how you use them,” he says. “It’s not what you have between your hands that counts – it’s what’s between your ears. You can keep using the system that you know and love, but just do it way better. Passive house is hard enough without changing the whole way you build a building.” But phase three of Silken Park is no full stop.

It’s rather the latest point in a journey Durkan Residential have been on since brothers Patrick and Barry Durkan set up the company in 2003. The 55 unit first phase was built in 2007 to a high standard in terms of finishes, but built to the energy performance standards under building regulations at the time. When the new build market nosedived, the brothers teamed up with architect and sustainability consultant Jay Stuart to form Ecofix in order to to capitalise on the new market for retrofit, and external insulation in particular.

Stuart, the company’s technical director, says Ecofix specialises in “cost-effectively building low energy, high quality external envelopes.” According to Stuart, the company has accumulated invaluable experience and knowledge in its efforts to improve the existing stock – knowledge that can be applied to new build too.

“It’s been a journey together working on retrofit for the last eight years – getting used to the idea of what’s effective, what’s cost-effective, and to trial ideas on relatively small contracts, and to be thinking about airtightness, thermal bridging and ensuring we get adequate ventilation.

Stuart describes Silken Park as a “great opportunity” as a clean slate to apply the principles that the company had been applying in retrofit. “Through our experience, we encountered many, many problems homeowners had with poor ventilation, condensation and mould, and lack of thermal comfort. Applying all of that experience to new build, Ecofix and Durkan Residential saw that we could achieve a high standard cost-effectively. That’s the core message – ventilation, airtightness and thermal bridging. And I’d put ventilation before airtightness.”

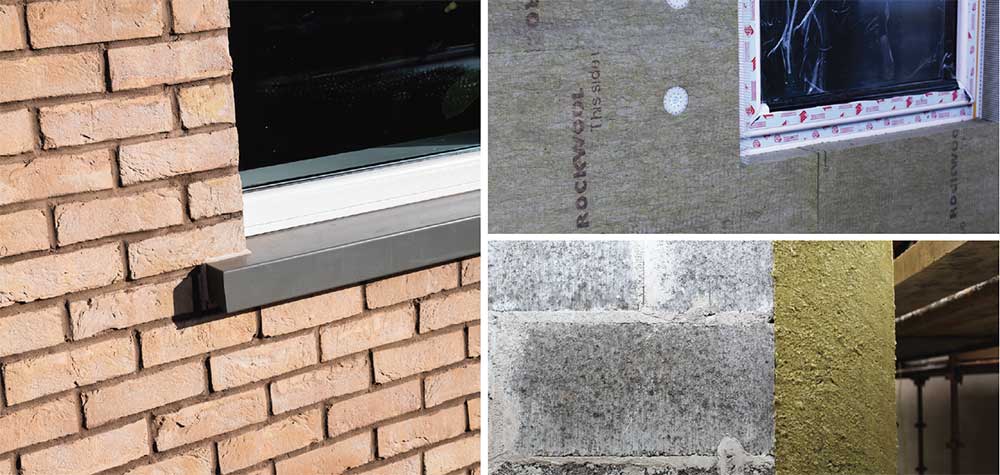

(Above) The houses are constructed of single leaf hollow block walls finished outside with Rockwool’s REDArt Silicone and BrickShield external insulation systems, including 200mm Rockwool semi-rigid insulation.
(Above) The houses are constructed of single leaf hollow block walls finished outside with Rockwool’s REDArt Silicone and BrickShield external insulation systems, including 200mm Rockwool semi-rigid insulation.

As previously reported in issue 18 of Passive House Plus, the company began to apply its learnings to new build in last year’s 15 unit second phase at Silken Park, itself a laudable low energy project which featured essentially the same wall build-up, but with double rather than triple-glazed windows, a strip foundation system, demand controlled ventilation and condensing gas boilers. The project blitzed the airtightness target of under 2 ACH – nine of the homes came in at less than 0.534 ACH, and the worst recorded result was 0.812. The Durkans took note: passive house was within reach.

Nonetheless, Barry Durkan – who along with several other staff members has recently qualified as a certified passive house tradesperson – didn’t take the decision to take on passive house – and Ireland’s largest passive house scheme to date at that – lightly. “It was a little daunting,” he says. “The fact that we had phase two under our belts made it a little easier – we’d dealt with airtightness and external insulation.”

He needn’t have worried. The final blower door test result on the show house of 0.20 – coincidentally in both air changes per hour and m3/hr/m2 at 50 Pascals – is one of the best results Passive House Plus has ever encountered, in particular for a masonry building. It’s three times lower than the passive house threshold, and no less than thirty-five times tighter than the backstop of 7 m3/hr/ m2 under Irish building regulation, making a mockery of the state’s targets.

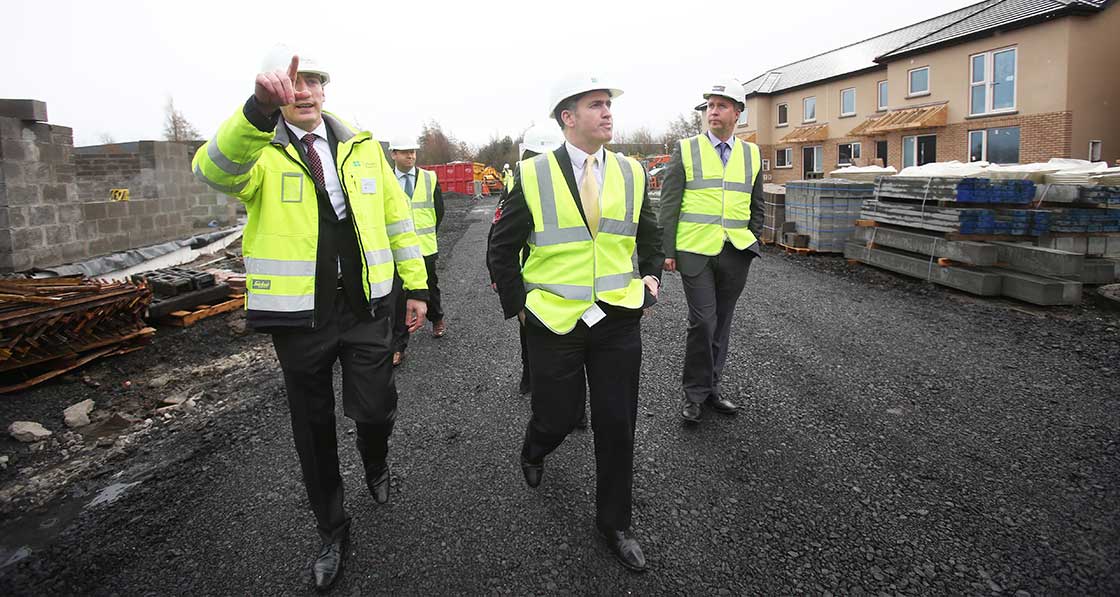

(L-r) A site visit with Patrick Durkan, Department of Housing advisor Seán Armstrong, Minister of State for Housing Damien English and Electric Ireland general manager Paul Stapleton.
(L-r) A site visit with Patrick Durkan, Department of Housing advisor Seán Armstrong, Minister of State for Housing Damien English and Electric Ireland general manager Paul Stapleton.

To stretch credulity further, the sealing work was done by crew members from fabric contractor Ecofix who were experienced in external insulation, but had never done airtightness work before. But they didn’t get there by fluke. The buildings were carefully detailed for buildability, toolbox training was delivered for site operatives by Barry Durkan, and renowned airtightness expert Roman Szypura of Clioma House – who had served as airtightness contactor on phase two – acted as airtight consultant.

According to Ecofix CEO Kevin Durkan, the team’s formidable results were underpinned by decisions taken long before the project went on site. “It’s because it was so well designed,” he says. “It was very easy to follow, and doesn’t take much to police it. We were going around the envelope to look for a pin hole to show the guys what a tiny leak is like at 50 pascals of pressure, to feel the wind coming through. We couldn’t find one, other than the keyhole.” The end of terrace show house was no anomaly either: the two other smaller dwellings in the same block kept up the impressively high standards, clocking up results of 0.28 and 0.29, giving an average for the three houses of 0.24.

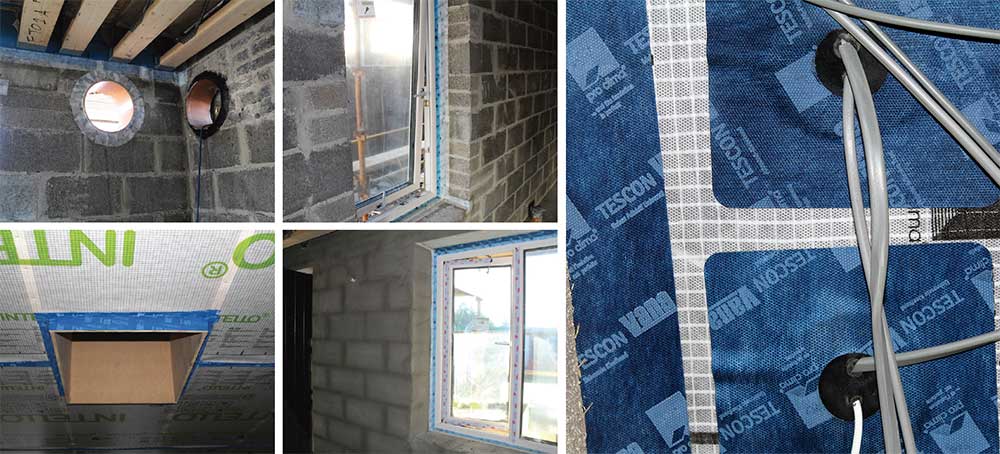

(clockwise, from above) Barry Durkan’s own detail for an airtight attic hatch, a plywood box with a depth to match the 450mm attic insulation; exhaust and intake holes for the MVHR system, separated by a corner wall to avoid crossflow/contamination, sized large to allow a slow fan speed and quiet operation; airtight taping around Munster Joinery windows; sand and cement render to the blockwork internally for airtightness. (right) airtight grommets around entry points for cabling.
(clockwise, from above) Barry Durkan’s own detail for an airtight attic hatch, a plywood box with a depth to match the 450mm attic insulation; exhaust and intake holes for the MVHR system, separated by a corner wall to avoid crossflow/contamination, sized large to allow a slow fan speed and quiet operation; airtight taping around Munster Joinery windows; sand and cement render to the blockwork internally for airtightness. (right) airtight grommets around entry points for cabling.

Rapid and methodical

According to Barry Durkan, the requirement to define the spec and build process early on in the Passive House Planning Package software is one of the key reasons the company is achieving a 12 week build schedule. “PHPP gives us a system approach to building. That’s what attracted us in the first place.

You can organise your labour, your men, so your procedures flow. You can get into really good detail in terms of planning. Because the model is done – there’s no guess work anymore. Once the PHPP was done we knew exactly what we had to achieve. Our detailing was done. It affects all trades – block layers, carpenters, right through the spectrum. So we write into in the contractors’ package what we expect from them. And we go into detail about airtightness.”

He adds that the clarity of the process creates a good atmosphere on site. “Everyone knows where they’re going. We’ve got good quality control.” Barry Durkan also emphasises the decision to use construction software developer VRM Tech and their cloud based collaboration and invoice management platform Refurbify – which harnesses the ubiquity of smart phones to give site operatives evidence-of-use apps that track progress in real-time against planned works and specified products. “It’s been very positive,” he says. “Initially the operatives were sketchy about it because it required a bit more time, and evidence of each individual house.

But once the first few houses were done, it just became part of the contractor’s brief.” Such a tool, he points out, is well timed to capitalise on the requirement to manage and record work inherent in standards such as passive house and Ireland’s Building Control Amendment Regulations. “It’s about getting everyone to buy into it – from professionals to contractors.”

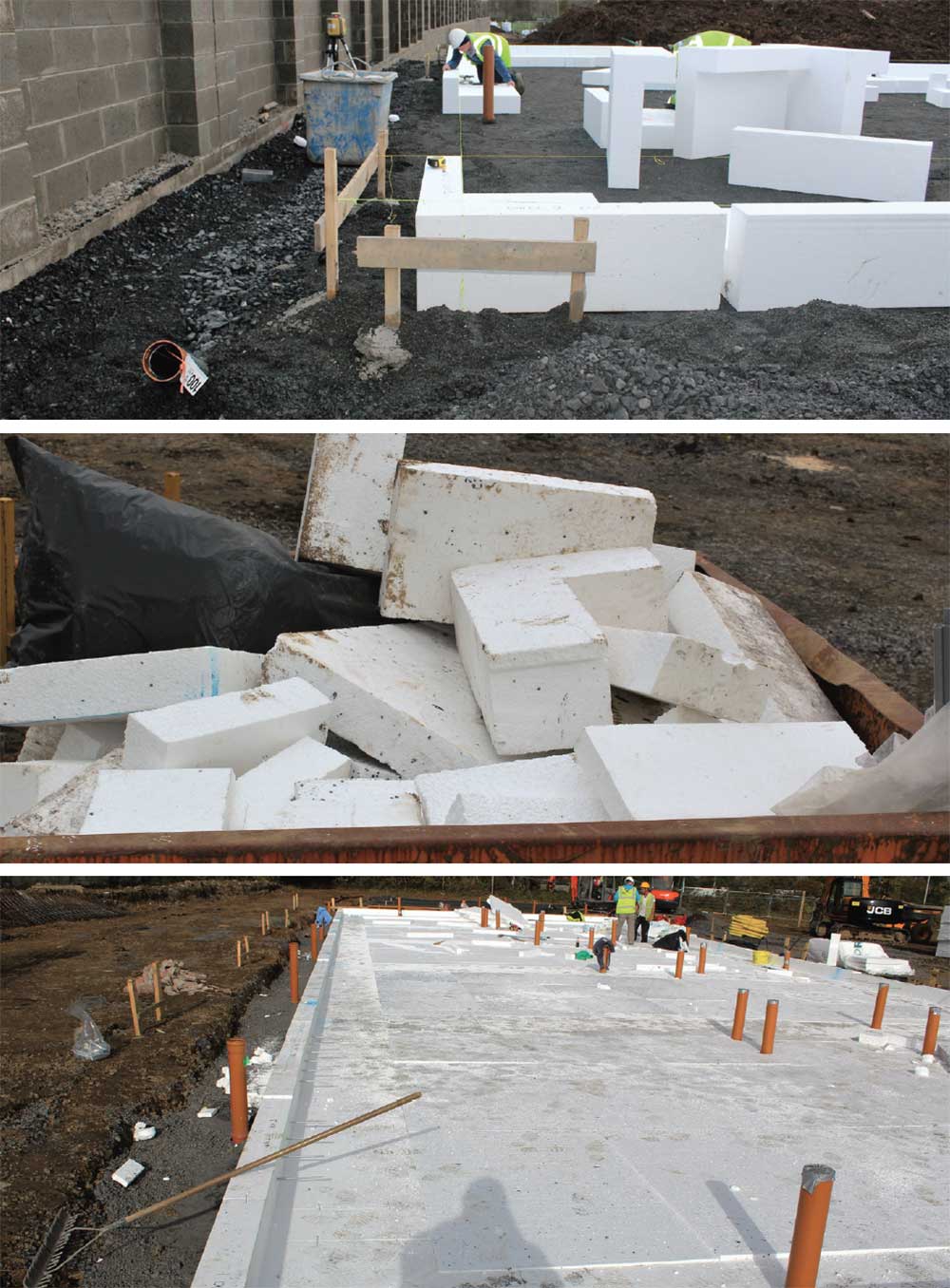

(Above, top to bottom) Installation of the Kore Passive Foundation system with EPS insulation beneath the slab and around the ring beam at the perimeter, eliminating thermal bridging through the ground floor, while minimising construction waste in the process – the off cuts shown here are from five houses.
(Above, top to bottom) Installation of the Kore Passive Foundation system with EPS insulation beneath the slab and around the ring beam at the perimeter, eliminating thermal bridging through the ground floor, while minimising construction waste in the process –  the off cuts shown here are from five houses.

The evidence trail also played a key role in the project gaining Home Performance Index sustainability certification in spite of the decision to apply being taken when the project was well advanced.

Cost neutral

But what about cost? Durkan Residential commercial director Andrew Kinnear sheds some light:

“We did an independent review of our figures of a comparable house – standard block construction and timber frame regs compliant houses, with comparable finishes in terms of kitchen and finishes. It’s coming in cost neutral.” According to Kinnear, this is in large part down to a decision to start with a blank piece of paper and design from first principles. “Certainly historically, developers have looked at new regulations coming in, brought a consultant in and said: ‘here’s my house, what do I have to add to it to make it comply?’ As opposed to value engineering it.” He has a point. The prevalence of this kind of approach is reflected in the costing exercise the Department of Housing does in its regulatory impact analyses when introducing proposed changes to building regulations, where a typical house design is chosen, and the extra cost of ratcheting it up to the new standard is quantified.

While there have been numerous examples – many published in this magazine – of single dwellings built to the passive house standard within normal cost ranges, Tomás O’Leary points out the significance of commercially- minded house builders reaching the same conclusion. “It’s very encouraging that they’re delivering passive houses at cost parity,” he says. “We now have two developers – the other being Michael Bennett – delivering passive houses at no extra cost. When it comes to larger development there really is no excuse. The cost argument is off the table. Move on. That’s no longer an issue.”

Durkan Residential managing director Patrick Durkan points out that going passive – added to the company’s own methodical approach – is helping to keep costs down. “Our design approach with every house of apartment we’re building takes the passive house design principles, he says. “By using PHPP to design, we build a really good house. We don’t need to add all of the extras. We’re sticking to our principles: externally insulate and make the envelope airtight. It doesn’t make it cost prohibitive – it’s just clever.”

Materials

Patrick Durkan explains that while this is the second version of this design, the company is “still trying to refine and refine” to reduce material costs without compromising on performance. “The less in, the more economic we can make the build cost.”

That can also mean cutting down on environmental impact, by utilising fewer materials. The use of single leaf walls of hollow blocks – which use some 30 to 40% less concrete than a comparable solid block, and are relatively quick to build with – is one example. The KORE Passive Slab is another.

Structural engineer Hilliard Tanner explains that the systems is essentially a continuous ring beam around the perimeter attached to the floor slab, with thickenings in the slab for load bearing party and internal walls. “In all projects, the insulated foundations are designed to take account of the ground conditions and the loads from the structure on them - which in our experience rarely happens for traditional strip footings.” says Tanner. Jay Stuart is a fan. “It’s a different conceptual approach to digging a trench and pouring lots of concrete to support the point loads or structural loads which are usually the external and party walls,” he says.

“The thing about the Passive Slab is that it’s a floating foundation which instead of sitting on the ground is sitting on a layer of impervious insulation, sitting on stone.

This simplifies the build process and saves money. “You don’t have to dig trenches, you don’t have to cart away sub soil,” he says.

Way to NZEB 06

“There’s a saving in everything you don’t have to excavate and cart away using diesel to landfill – which is also not a great thing.”

KORE claim that the system can reduce concrete use by up to 50% compared to a conventional strip foundation system, which means cost and environmental savings.

“You know to the cubic millimetre how much concrete you need long before you arrive on site,” says Stuart. “And because the insulation is prefabricated and delivered, there’s virtually no waste on site. You’re not really cutting on site – other than services coming up through the slab.”

The passive route to electric nZEB

Electric Ireland general manager Paul Stapleton explains why the state’s largest electricity utility sees a bright future for projects like Silken Park.

Electric Ireland is proud to be associated with the Silken Park Development, which brings the benefits of a fully future-proofed all-electric home to homeowners today.

Electric Ireland has a long record of providing customers with sustainable energy solutions and helping them to use less energy. Over the past three years, we have invested about €20million in this way, reducing customers’ bills by circa €50million or over 430GWh of energy, equivalent to the annual consumption of about 50,000 homes.

Climate change is the defining challenge of our generation. ESB, which Electric Ireland is part of, aims to lead Ireland’s transition to a low carbon economy, using our knowledge, skills and experience in our business, and that of our partners, to find the best route for society as a whole.

At Silken Park, we have worked with Durkan Residential to develop an “all electric home”. These homes have very efficient heat pumps to provide all the heating and hot water and they are pre-wired for electric vehicle charging.

They are healthy & comfortable to live in, with low maintenance costs and very low energy costs – as much as 50% less than typical homes. They are emissions-free, so the air in the neighbourhood is clean and healthy to breathe. All of this comes for the same price as a normal house.

Stuart points out a health and safety headache is removed by migrating from conventional foundations. “You dig a trench. As soon as you dig that you’ve got a safety hazard. You then pour concrete into it up to a certain height. Then you build rising block walls up to the slab height. And you don’t usually back fill the trench until the rising walls are built up. So, during those four processes, until they’re complete you have a trench – a safety hazard that you can trip up on. It’s messy and the edges are irregular.

“With the Passive Slab all you’re doing is adding layers of compacted stone. So it’s a very safe, easy site to move around on at all stages of construction, carry materials, or run a wheelbarrow. And that speeds up all sorts of processes which you couldn’t anticipate.”

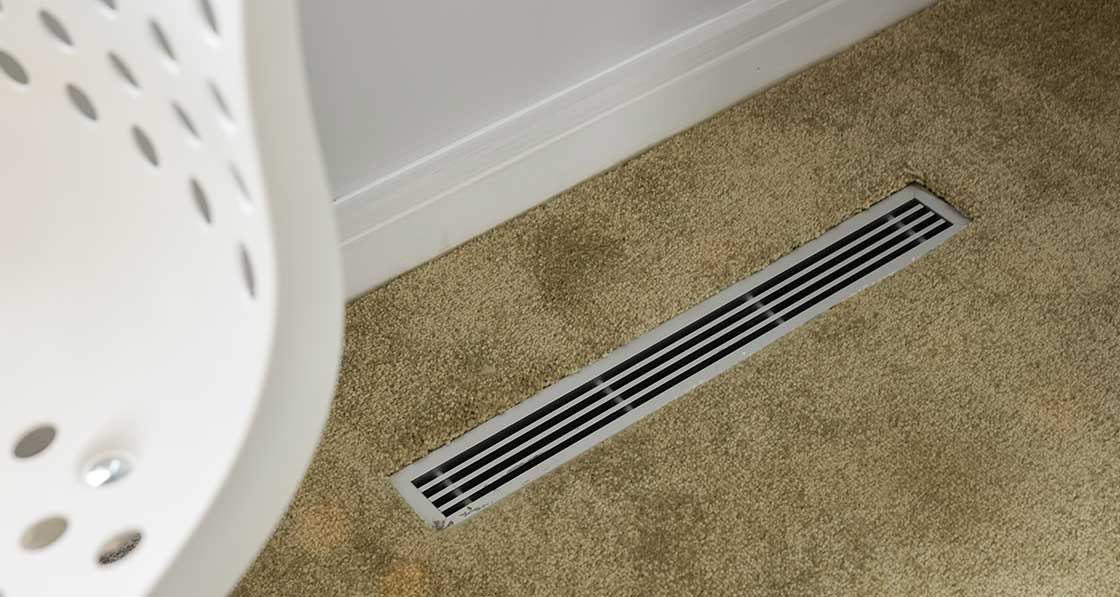

Way to NZEB 07

Passive House Plus visited the site in February for an industry launch event, wangling a lift in Stuart’s Nissan Leaf EV. Had the houses been finished, Stuart would have been able to recharge his car on site: all 59 houses will come pre-wired for EV charge points. In fact electrical innovation is a theme of the project: the homes use Nilan Compact P units for all heating, hot water, ventilation and – if required – a small amount of cooling, via a combined exhaust air heat pump and heat recovery ventilation system. The roofs are designed to take the weight of a solar PV system covering the whole roof area.

While the houses are already set up to beat the government’s nearly zero energy buildings target mooted for introduction by 2019, the addition of PV arrays would push them towards net zero. “At the moment we’re going for net zero, not nearly zero,” says Patrick Durkan.” Nearly doesn’t cut it in the commercial sector. You can’t nearly make money. We’re steaming forward to net zero. We need to integrate our houses with the grid. The last element of that is battery storage and the electric car. The house needs to become part of the grid, and part of that is the car. The car industry’s going to evolve more in the next 15 years than it has in the last 100.”

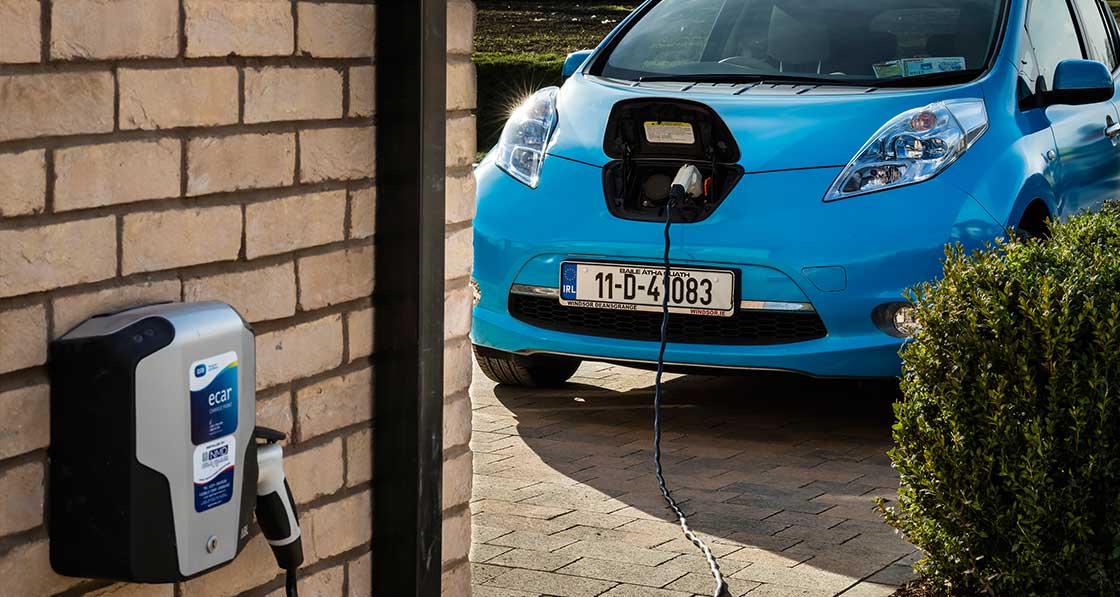

What’s more the residents at Silken Park will have the chance to charge their EVs and run their heat pumps for free: utility provider Electric Ireland has recognised the significance of the project, and is offering the occupants of the 59 homes three years worth of free night rate electricity, provided they sign up to the company’s new Pay as You Go package within three months of moving in.

The next step, according to Patrick Durkan, is to gather data from these homes, occupants willing, via a monitoring study in partnership with Electric Ireland, to share the learnings and inspire change – such as by showing the banks evidence that homes with such low running costs may warrant preferential lending terms. “We have spoken to one of the pillar banks. It’s a little early for them. By taking big data to the financial institutions with Electric Ireland we hope to show that these people need less disposable income [to justify a mortgage] and are less of a default risk.”

For Patrick Durkan, there’s a clear route ahead to further refine specs, deliver more cost savings, and improve environmental performance. “I call it positive living,” he says.

“We want to reduce our reliance on local services and contribute to local infrastructure.”

This will involve ambitious measures to conserve water and reduce foul and run-off water, and therefore tread lightly on public infrastructure. “At the moment in certain counties I’m paying €5000 for water rates out of a total contribution of €20,000. That goes on to the price of a house,” he says. “That should be €5000, but with less water coming in, and less foul going out.”

With one eye on a future where sites are self-sufficient in terms of water supply and disposal, Patrick Durkan argues that council land zonings and development contributions structures could recognise and stimulate such innovation. “There needs to be a rebate for this type of house – a reduction in terms of local contributions,” he says. “And that will be passed on to the consumer.”

Patrick Durkan says Silken Park serves as proof that the common perception that being green means making sacrifices isn’t always true. “I don’t like the concept of green – tree hugging, putting on an extra jumper,” he says. “I spend a quarter of my fuel, I have a better, healthier, more comfortable living environment, and we don’t add to government fines for failing to meet our carbon reduction targets. The benefits of this are actually immeasurable.” Patrick Durkan adds that the industry and parties invested in solving the housing crisis – councils, housing associations and politicians – need to take note of what is achievable and possible today.

The tens of thousands of families – this writer included – gripped in the turmoil of a housing crisis would be well served if Durkan’s words are heeded. There is considerable risk inherent in engaging in a rush to build quickly, when faced with a skills gap, and an industry is having to work out how to meet dramatically improved energy performance targets under national building regulations. Low energy buildings behave differently, and the industry’s broad failure to get to grips with building physics means that some considerable risks – overheating, poor indoor air quality and both surface and interstitial condensation, never mind failure to deliver anticipated energy savings – won’t be discovered until tens of thousands of buildings have been built, and the damage is done. Considered, proven approaches – and the 25 year old passive house standard stands out uniquely as a safe approach that is tried and tested, cost-effective, and delivers extraordinary comfort and energy performance – must be central to our plans. If the industry is willing to build upon the improvements in knowledge and workmanship evident in recent construction output, it has nothing to fear from going passive.

Way to NZEB 08

“It hasn’t just happened overnight,” says Barry Durkan. “We have put a lot of work into this. The mindset has to start from the top down. There has to be that desire to change. It needs to happen now. There’s no quick fix solution. We’re doing this because we think it’s the right thing to do.”

Jay Stuart has a seductively simple message: “Keep it simple. Focus on a few things,” he says. “We’re always researching and investigating alternative products and ways of constructing. We know there are still things we can do to increase the value and reduce the cost. It’s part of a journey, with continuous improvement, and we’re getting to places we never thought we’d be.”
