Deep green passive house defies all weather

Click here for project specs and suppliers

Building: 99 sqm timber frame bungalow
Location: Little Birch, Herefordshire
Completed: October 2017
Cost: £135,000 (construction only, including VAT rebate)
Standard: Passive house certified
£O for space heating (spent so far on timber for wood burning stove, see 'in detail' below for more)

Having designed a number of passive house buildings for his employer Architype while enduring life in a chilly old cottage that cost £1,500 each winter to heat, architect Juraj Mikurcik and his wife Joyce Freeman had been dreaming of building their own passive house.

Affordable plots for self-builds are a rare find in rural Herefordshire, but Juraj and Joyce were lucky enough to find the perfect site, by complete chance – they happened to pass it on a bike ride. The site, on a south facing slope with wonderful views out over the countryside, looked unused. And it was: it turned out to house a redundant shooting hut belonging to the Duchy of Cornwall, who are also Architype’s landlord at their nearby Upper Twyford office (the Duchy owns a lot of land in the area).

The Duchy agreed to sell the land, but Juraj and Joyce would have to get its approval for their design before the house was submitted for planning permission.

The Duchy required the building to look simple and modest – the former shooting hut was a low-roofed timber shed, and they wanted the house to reflect this agricultural aesthetic. This ruled out Juraj’s original, more overtly contemporary design with its monopitch green roof and distinctive glazing.

The Duchy’s stipulations worked to Juraj and Joyce’s advantage though, as valuation of the plot reflected the fact that though quite large, it was only going to accommodate one modest three-bed home, and not the three-garage McMansion (or two) that might otherwise have been built on a plot of this size.

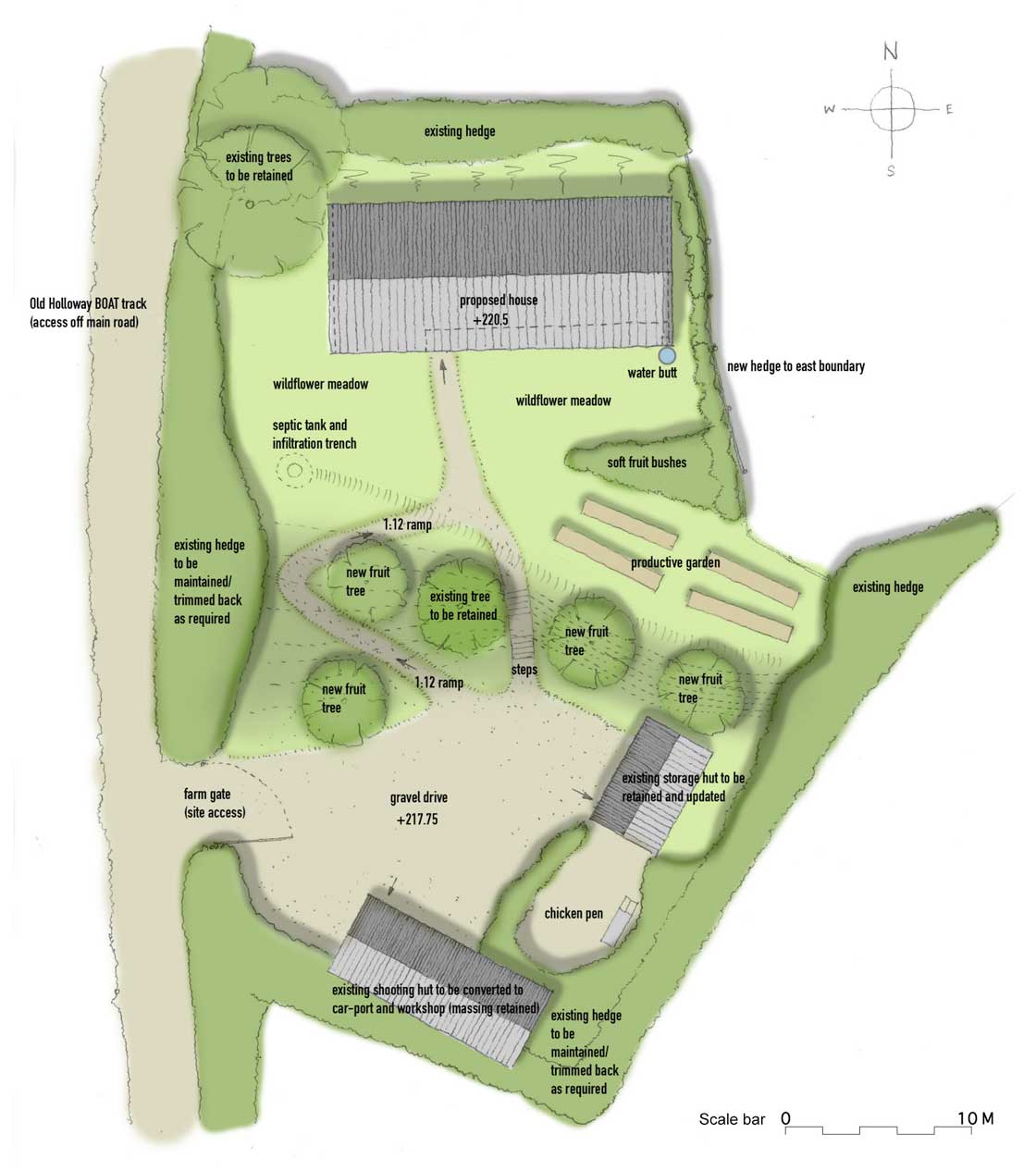

Juraj and Joyce were keen to build at the top of the plot, to take maximum advantage of the view. As there is a house behind them, they were limited to a single storey so as not to impinge excessively on their neighbours.

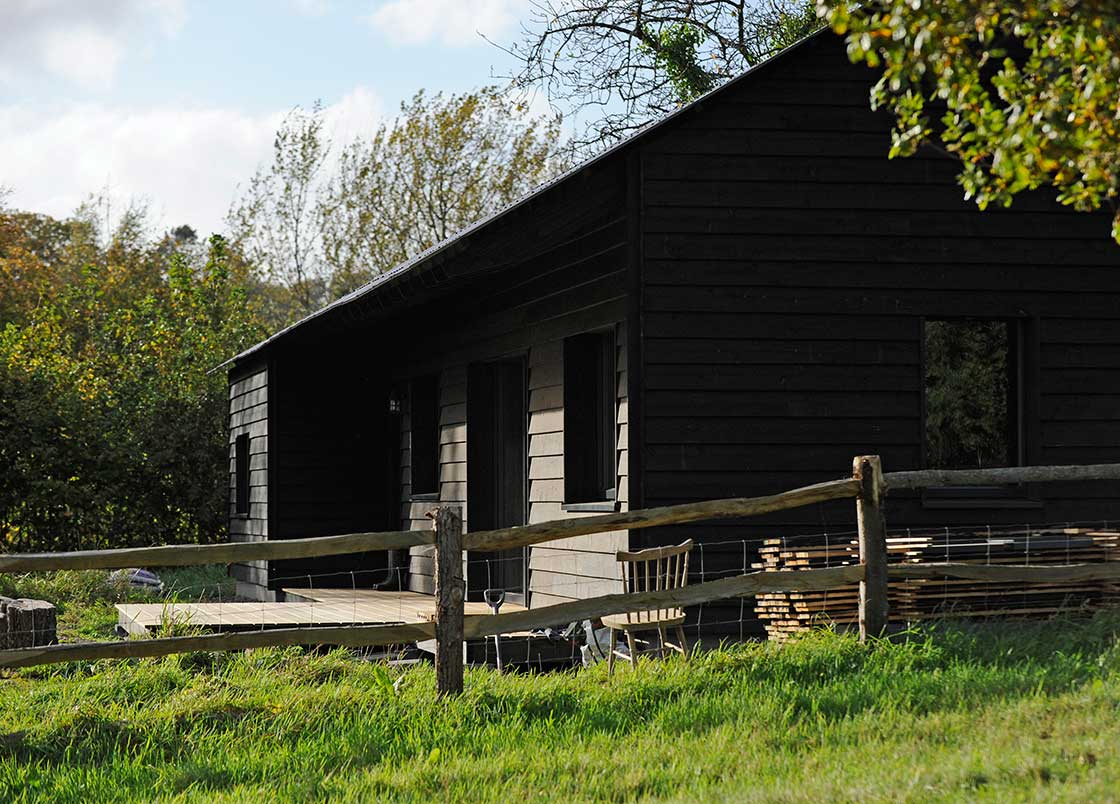

The design they settled on was a long, low, timber clad bungalow with a simple corrugated steel roof, the timber to be charred, and the roof painted black – a look Juraj liked, and also one that helped the building recede visually into its surroundings, in line with the Duchy’s preferences.

Small detached bungalows inevitably have pretty poor form factors, and with a ratio of 4.6 this one is certainly not ideal for a passive house (see ‘Explained’). But Juraj and Joyce did manage to achieve the standard without appearing to strain either the design or the choice of materials.

Straw and timber construction

This article was originally published in issue 25 of Passive House Plus magazine. Want immediate access to all back issues and exclusive extra content? Click here to subscribe for as little as €10, or click here to receive the next issue free of charge

For the build, Juraj was keen to try a modular, prefabricated straw-and-timber system called Ecococon that’s manufactured in Lithuania. “I encountered Ecococon via my friend Bjørn Kierulf in Slovakia, he had been using it for the past five years or so,” he says.

“From our point of view, it combines low impact, renewable materials with accuracy and speed. I had tried to specify this system on previous Architype projects, to no avail, so this was the perfect opportunity to try it out – and we were the first to use the system in the UK.”

Although committed to the use of natural materials, and in particular timber (the material most favoured by Architype), Juraj is not keen on the slightly ‘hollow’ finish he feels you sometimes get from timber frame with plasterboard linings.

“I wanted to achieve a solid feel to the house if possible. Coming from central Europe I’m quite used to masonry buildings. The clay plaster applied straight on to Ecococon panels creates a really solid wall. Also the Fermacell linings applied to internal partitions are double the density of standard plasterboard, so the building ends up feeling a lot more solid.”

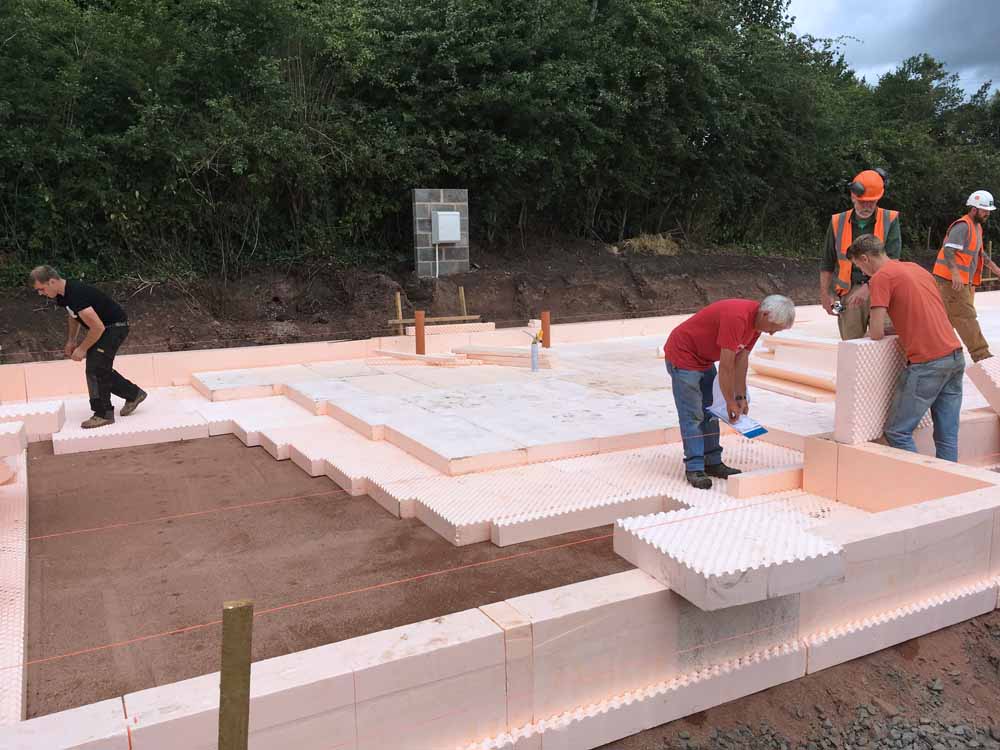

• Installing the 250mm Isoquick EPS insulated foundation system Installing the 250mm Isoquick EPS insulated foundation system

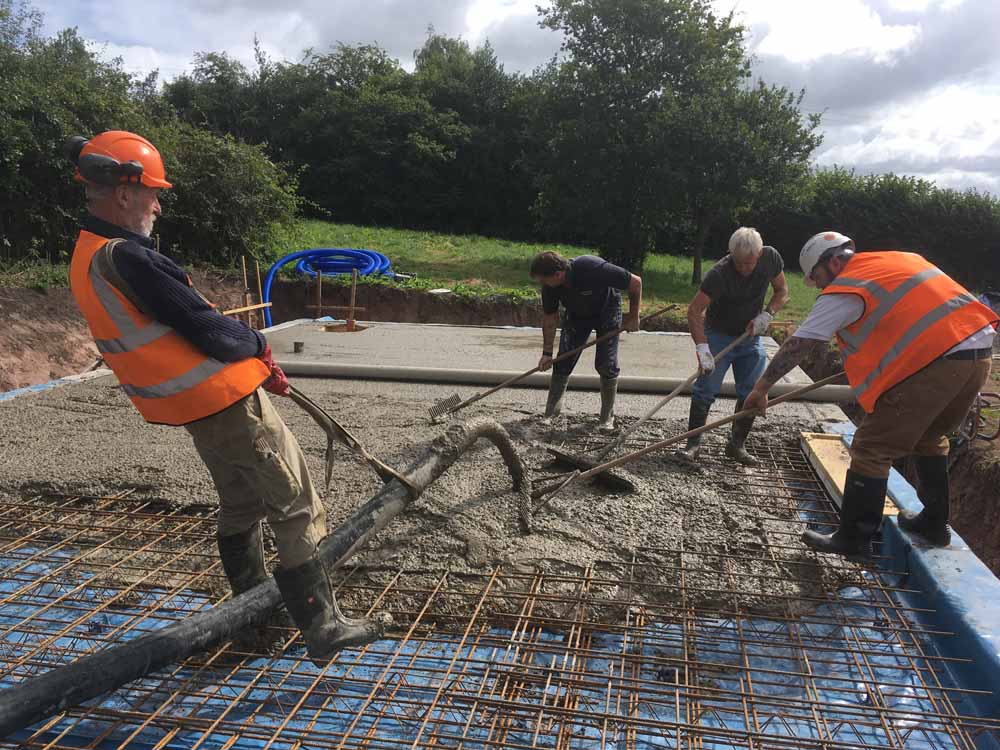

• Pouring the concrete slab Pouring the concrete slab

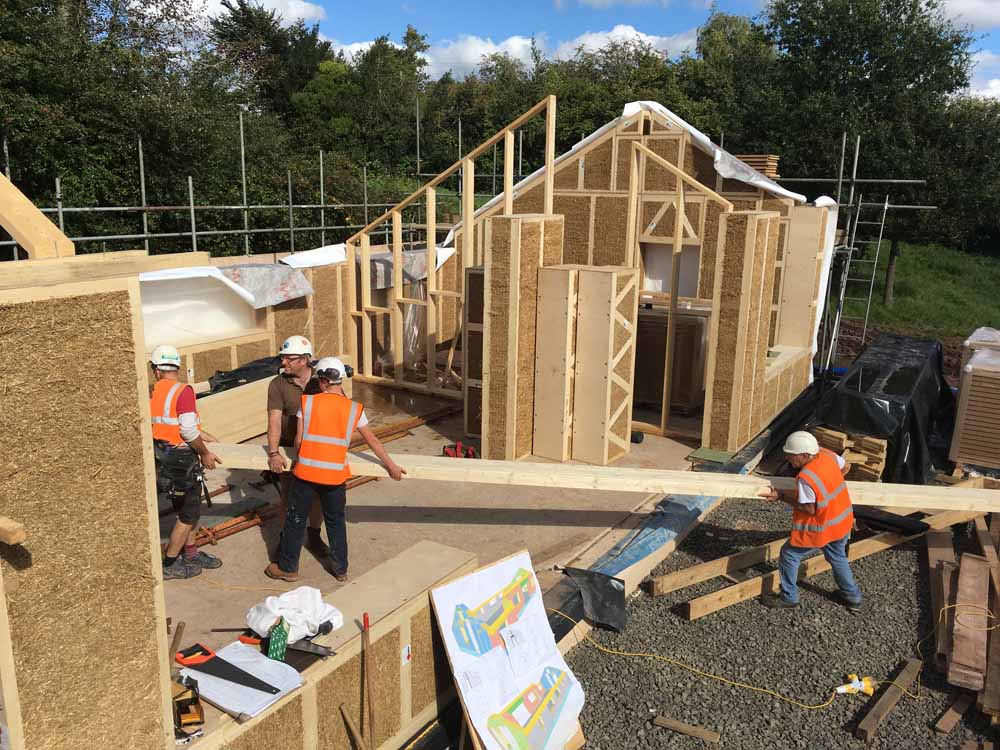

• The walls of the house were built using Ecococon, a modular prefabricated straw-and-timber system The walls of the house were built using Ecococon, a modular prefabricated straw-and-timber system

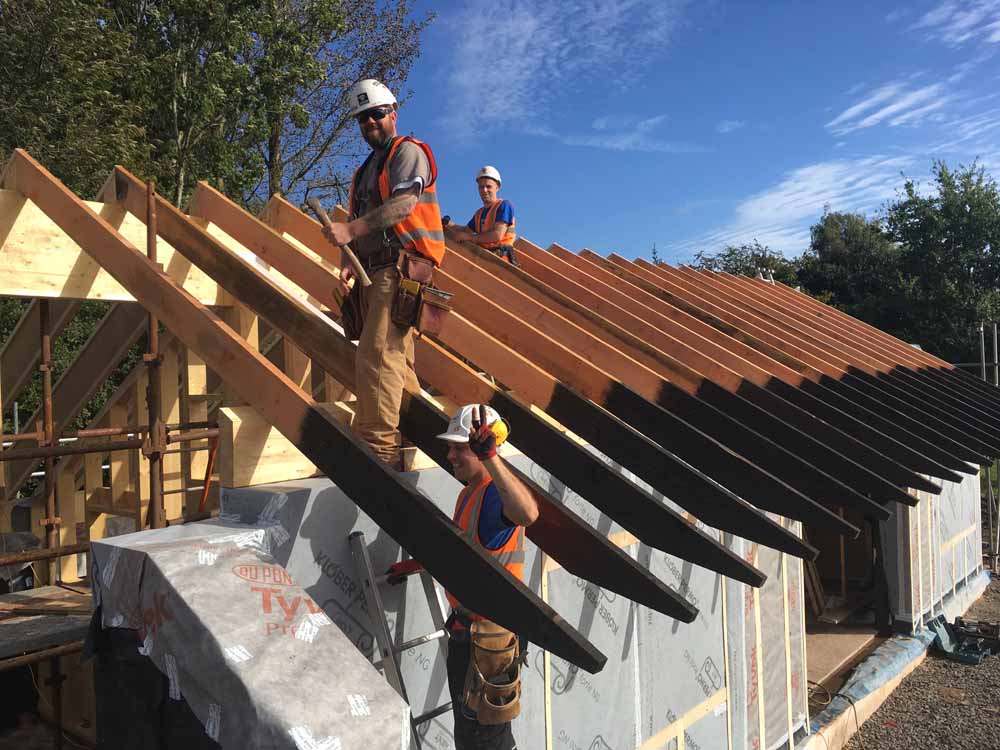

• Econocon also supplied the roof system, which features I-joists and a thermalbridge free cantilevered roof overhang along the south Econocon also supplied the roof system, which features I-joists and a thermalbridge free cantilevered roof overhang along the south

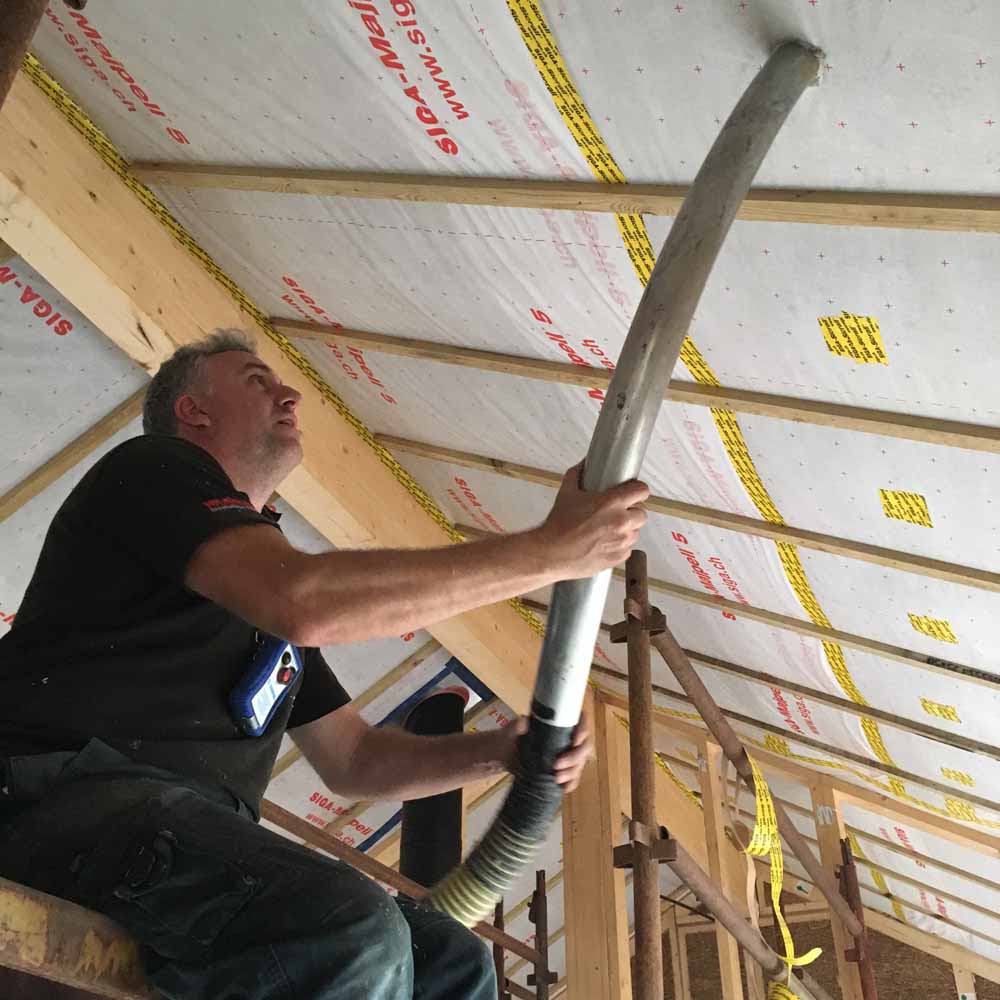

• Cellulose expert Gordon Lewis pump-filling the Warmcel cellulose insulation into the roof Cellulose expert Gordon Lewis pump-filling the Warmcel cellulose insulation into the roof

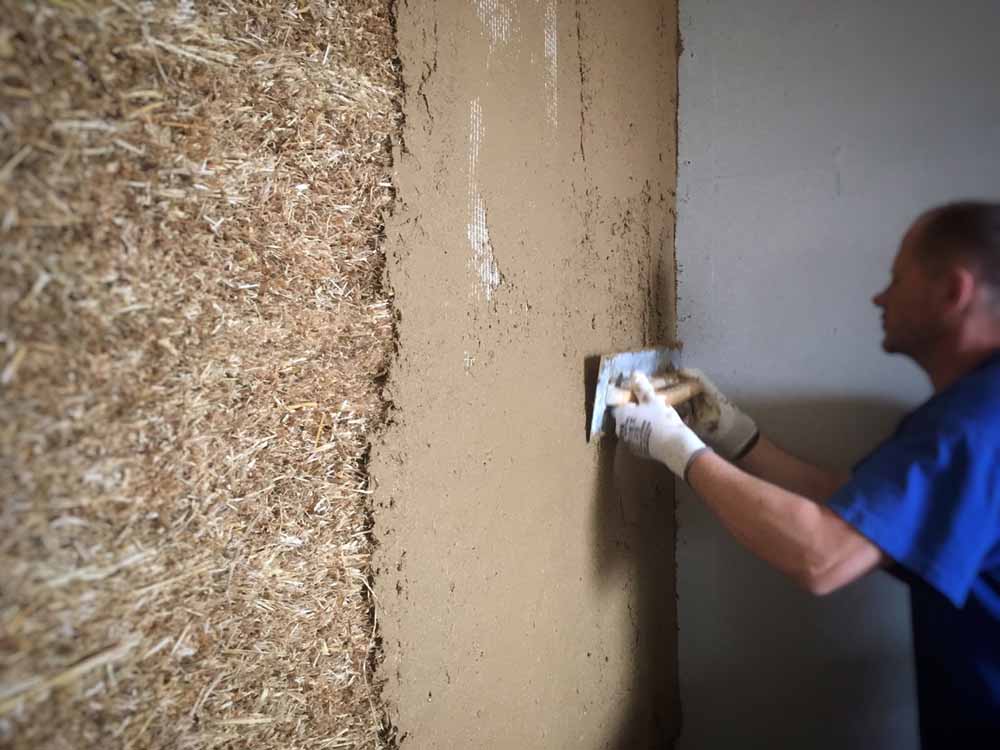

• Internal clay plastering directly onto the straw, with reinforcing mesh visible Internal clay plastering directly onto the straw, with reinforcing mesh visible

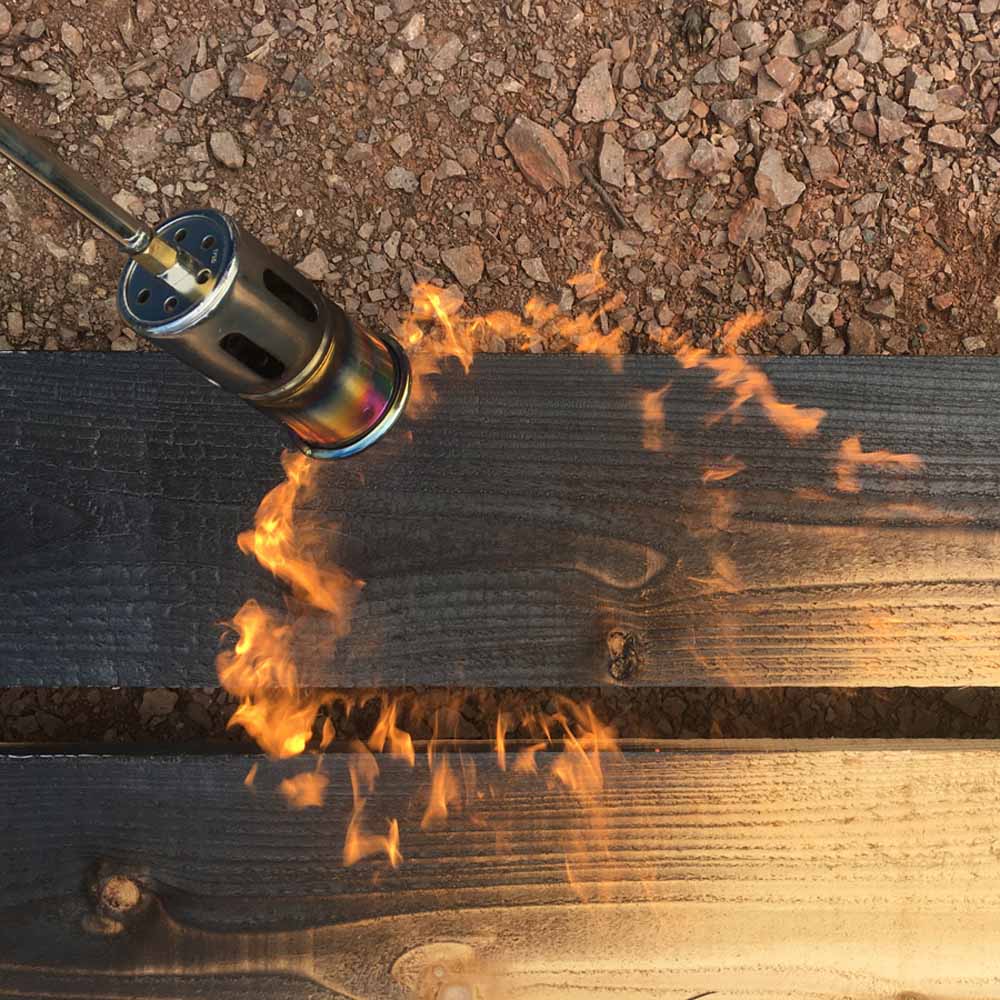

• The locally-sourced cedar cladding was all charred on-site with a blowtorch, to give a pleasing, slightly-textured, and highly durable finish The locally-sourced cedar cladding was all charred on-site with a blowtorch, to give a pleasing, slightly-textured, and highly durable finish
• The locally-sourced cedar cladding was all charred on-site with a blowtorch, to give a pleasing, slightly-textured, and highly durable finish The locally-sourced cedar cladding was all charred on-site with a blowtorch, to give a pleasing, slightly-textured, and highly durable finish

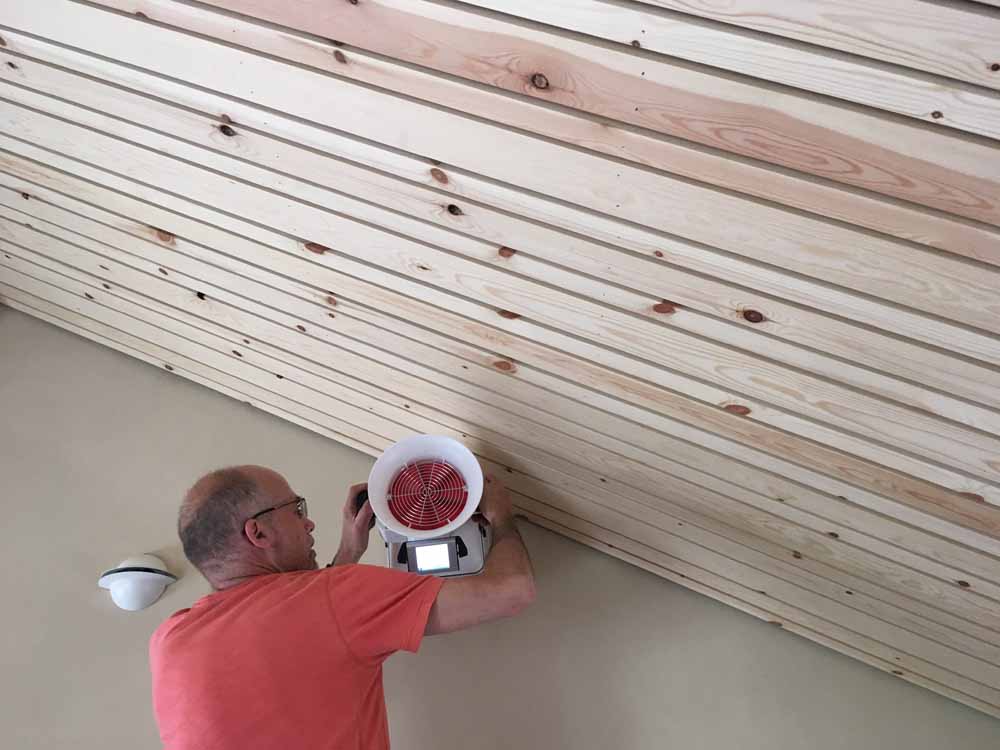

• Alan Clarke commissioning the ventilation system Alan Clarke commissioning the ventilation system
•

Ecococon is a screw-together modular system, comprising wooden frames densely packed with straw to achieve precise sizing, and consistent thermal and moisture properties.

End panels and window reveals are faced with 12mm plywood, but otherwise the timber structure does not cross the straw layer, minimising thermal bridging, and enabling the system to achieve passive house certification.

Everything in Juraj’s design was sized to fit Ecococon’s standard 600mm and 800mm modules, which proved much more cost-effective than getting bespoke module sizes made up. The design was all communicated in the SketchUp 3D modelling software, and Ecococon supplied a colour-coded set of build instructions.

Structure and insulation

Inside, the main labour of love was the polished concrete slab – ground by Juraj over an uncountable number of hours.

To achieve the passive house standard, the insulating performance of roof and walls had to be increased slightly on Ecococon’s standard spec, but this worked well with other aspects of the design.

For example, as Juraj and Joyce were building to the passive house standard, the Ecococon system required an airtightness membrane sitting outside the straw layer (so the clay plaster could be applied directly to the straw internally). This in turn made it necessary to add wood-fibre boards to the outside of the straw and membrane, otherwise a sharp temperature drop could have created a risk of interstitial condensation here. But this extra layer of insulation also brought the wall U-value down to what was required to meet passive house requirements.

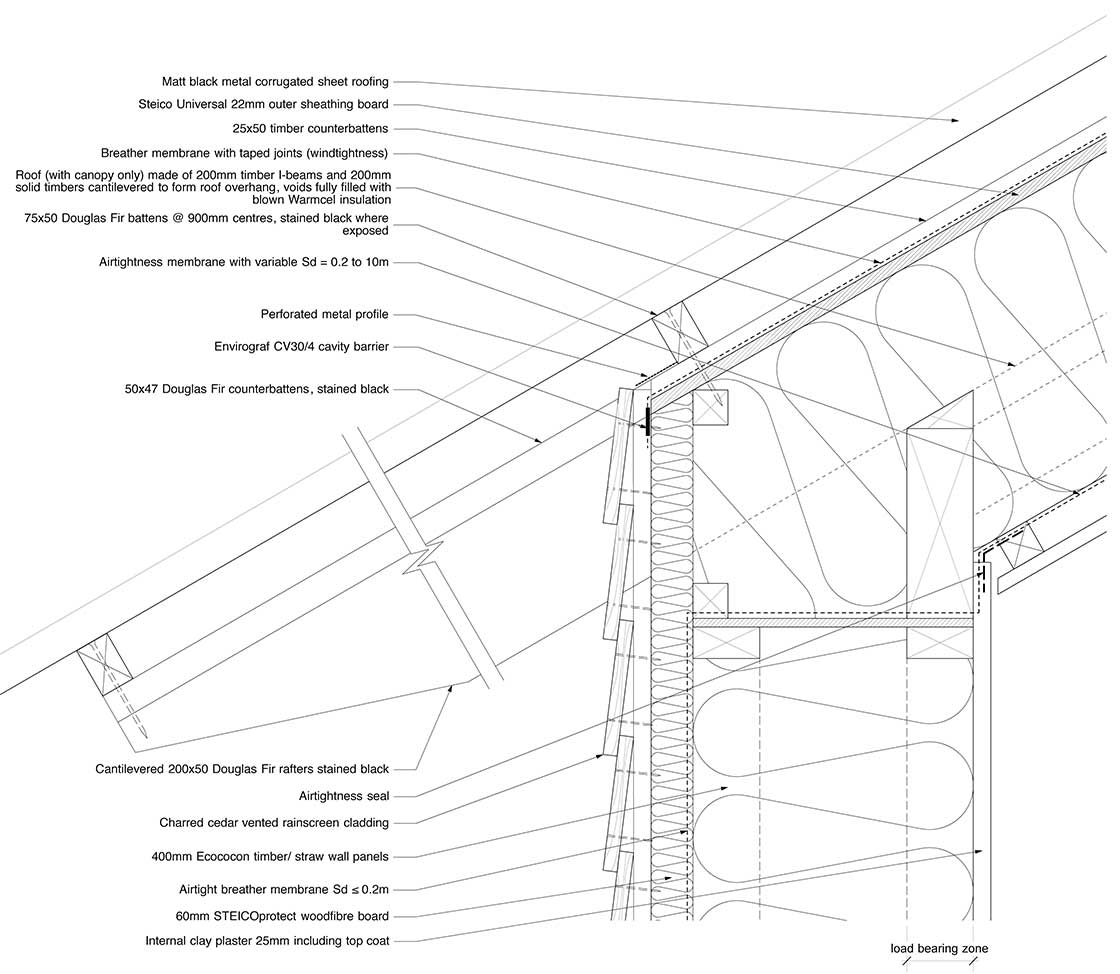

To get a low enough U-value in the roof, I-joists were used, fully filled with 400mm of Warmcel. “On the plus side this allowed us to achieve a thermal bridge-free cantilevered roof overhang along the south, because there was enough depth to incorporate rafters without bridging right across the roof insulation,” Juraj says.

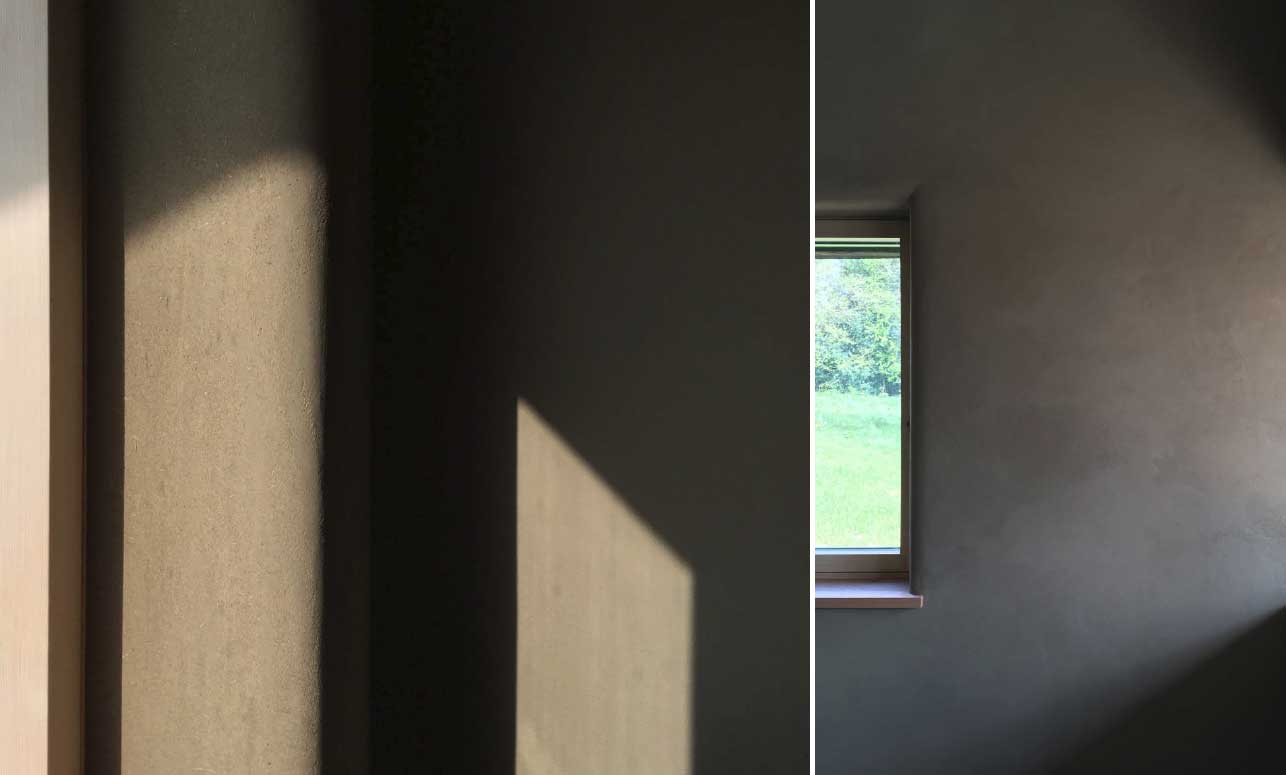

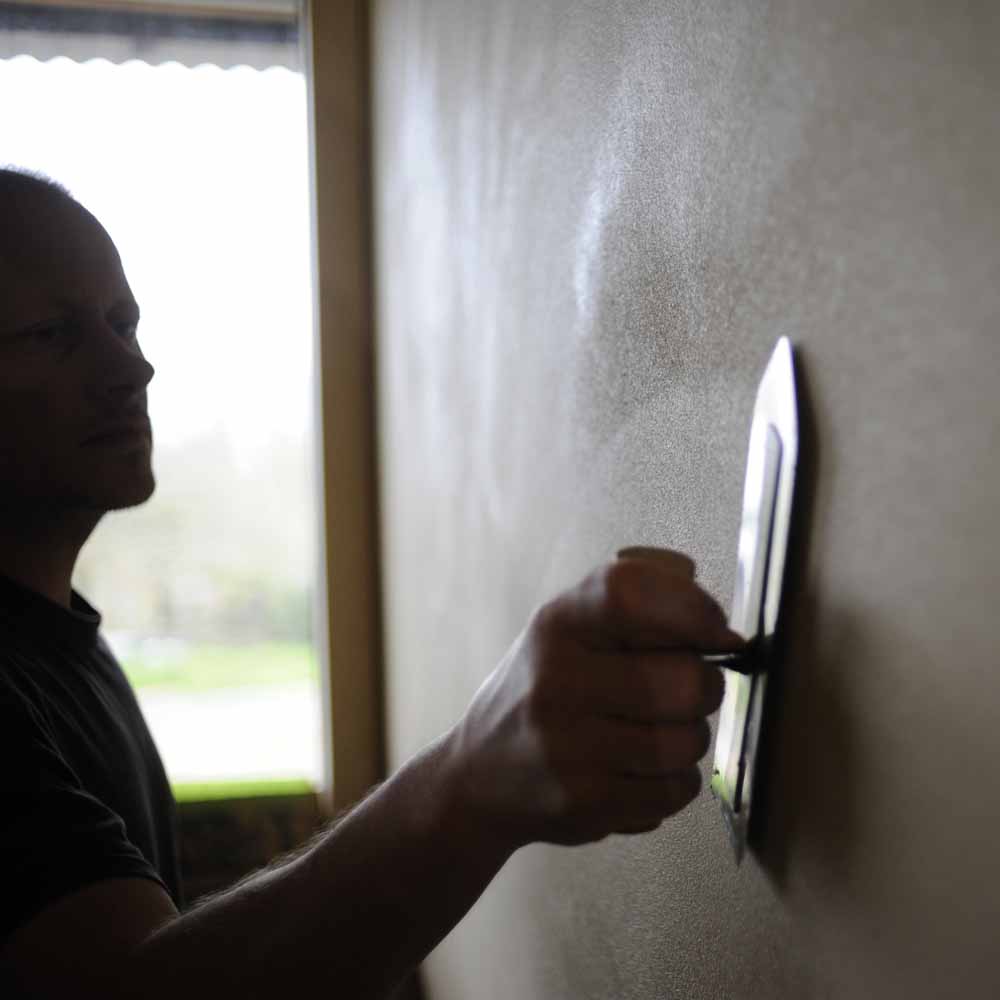

• The internal clay plaster The internal clay plaster

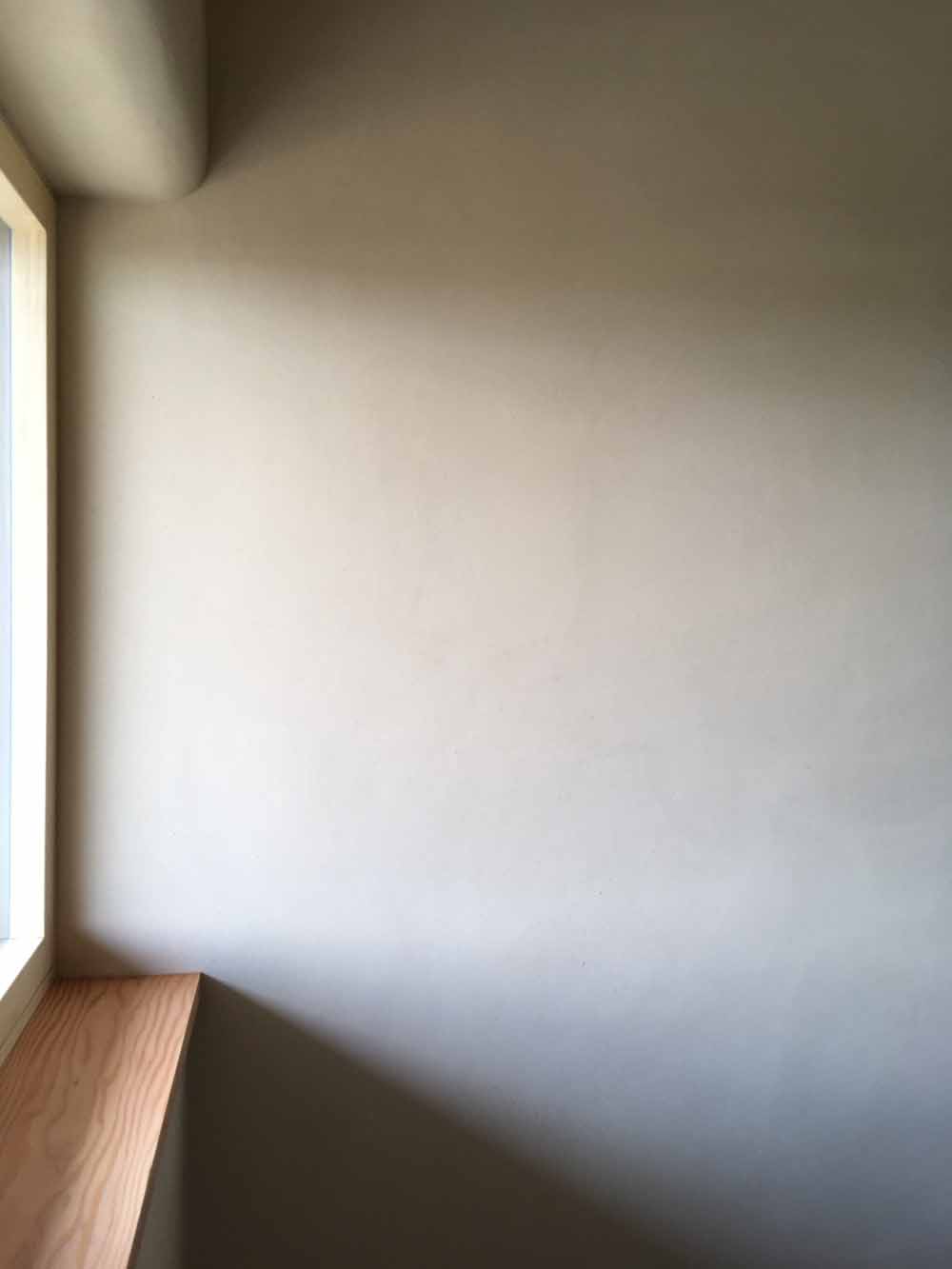

• The internal clay plaster The internal clay plaster

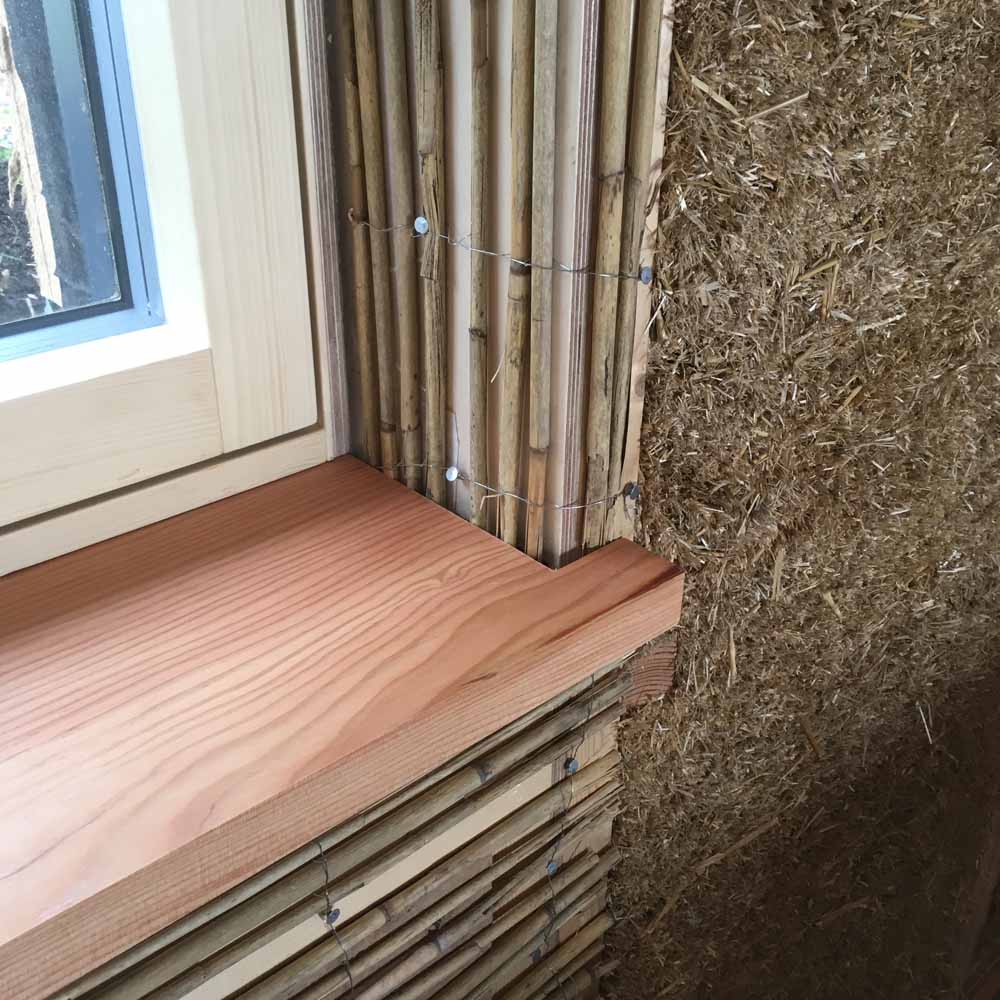

• The straw-insulated walls with reed mat reinforcement The straw-insulated walls with reed mat reinforcement

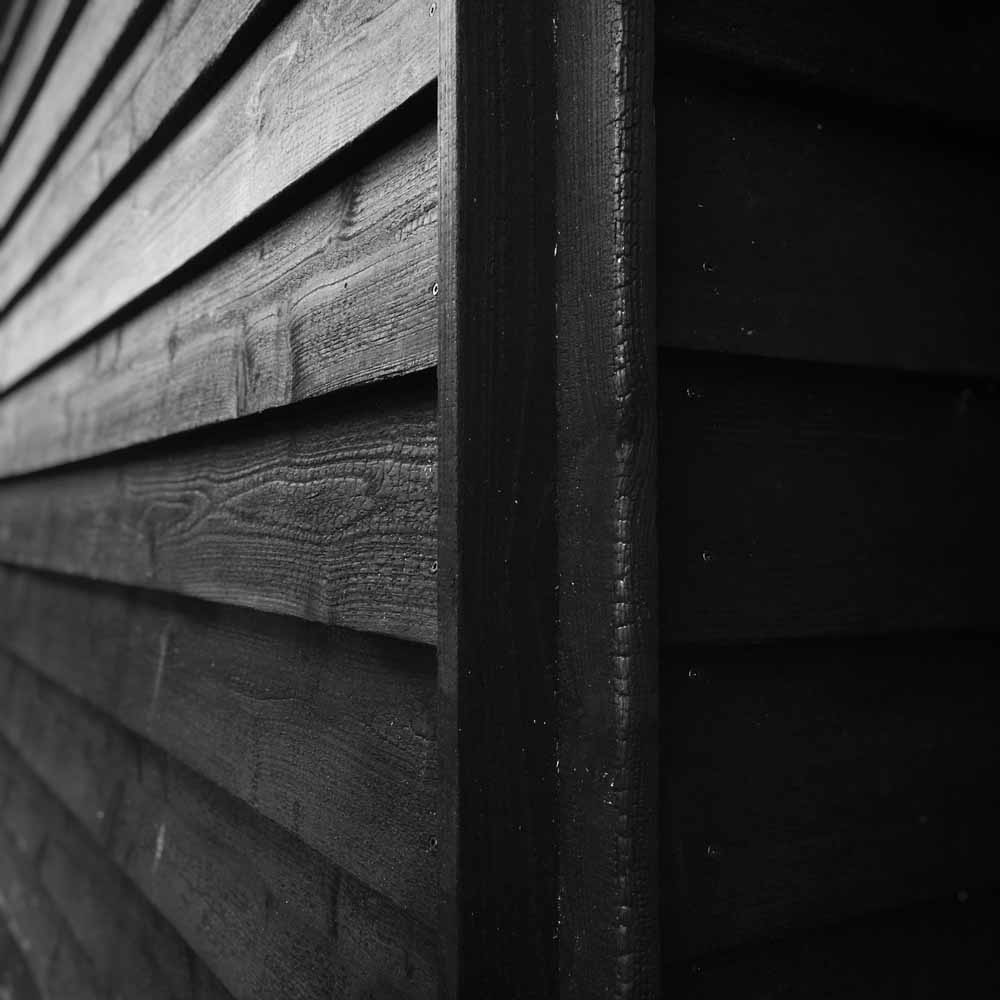

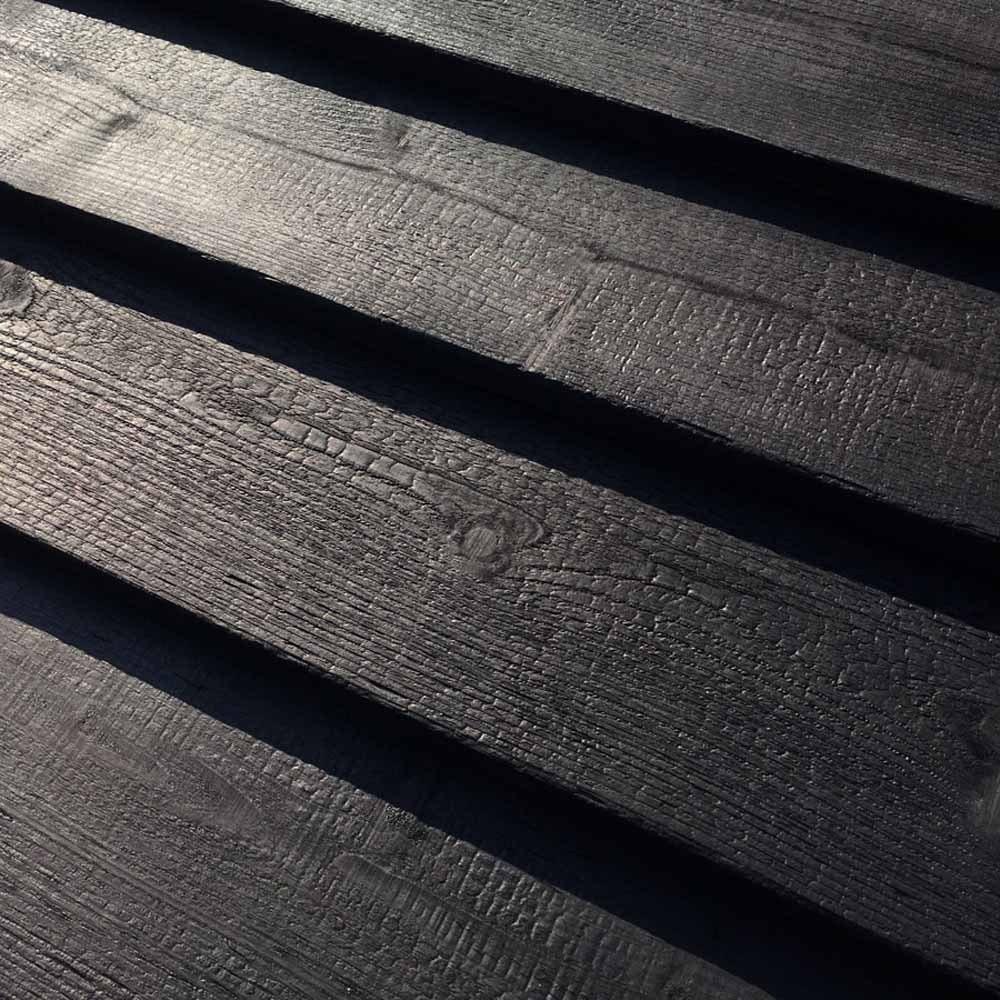

• The charred cedar cladding The charred cedar cladding

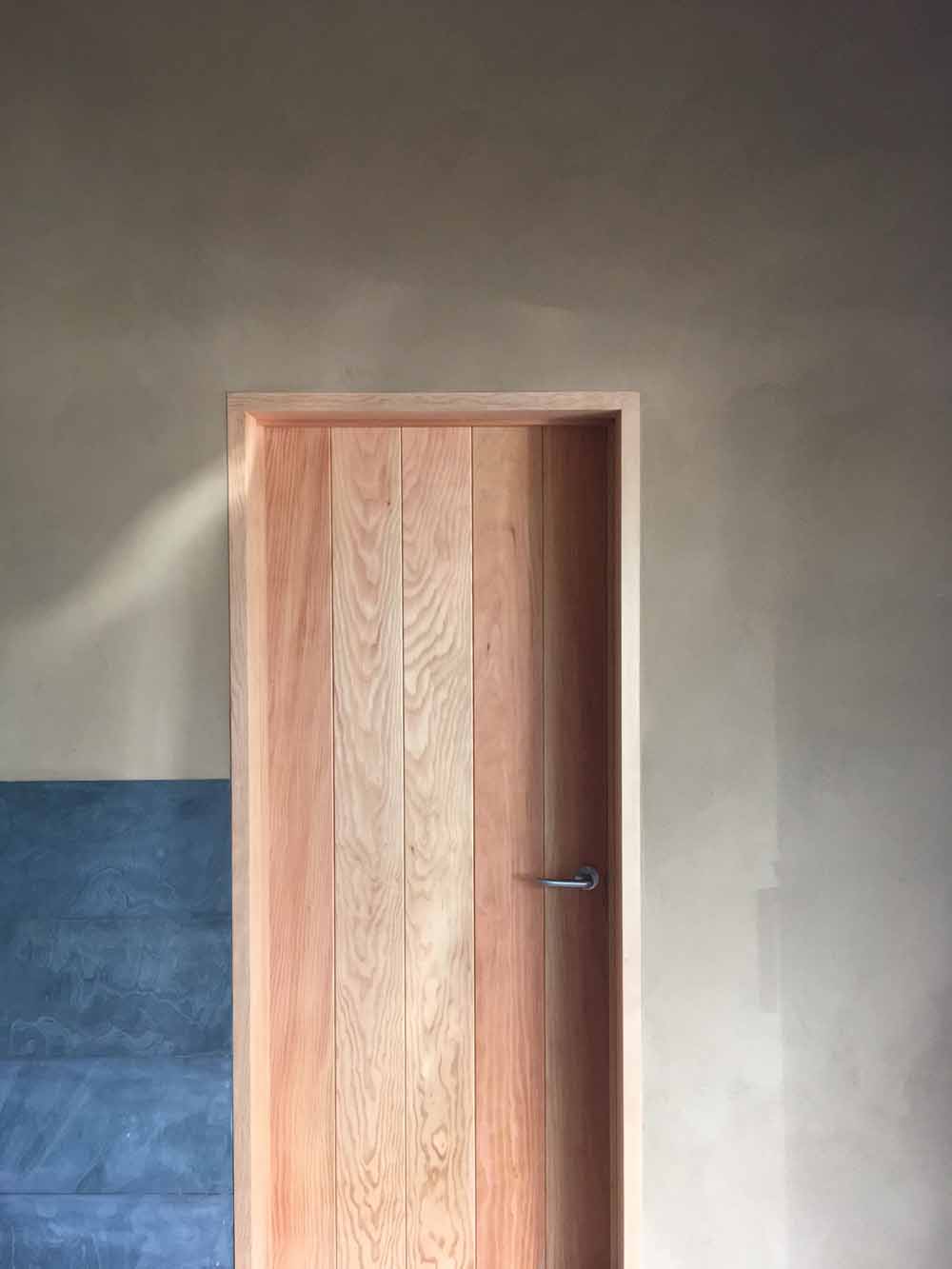

• Douglas fir for internal doors Douglas fir for internal doors
•

Ecococon designed and supplied all the roof structure, including pre-sawn beams, wall plates and so on. “There was only one main delivery to worry about, and I wanted to keep the structural packages with one subcontractor rather than splitting it up and risking finger pointing if anything didn’t fit. I’d recommend this approach every time,” he says.

The floor construction is an Isoquick raft system, essentially a tub of EPS insulation with a concrete slab poured above and within the insulation. Compacfoam high density EPS is installed within the system under door thresholds to support their weight.

The straw panels were set out from the floor slab in order to align the straw layer with the returns of the under-slab insulation.

Ecococon confirmed that the panels would comfortably support the roof with this arrangement.

Passive performance

For winter warmth and comfort, alongside the high levels of insulation, low thermal bridging and airtightness, the bungalow employs extensive south glazing.

High performance windows are not cheap, but oh, they are lovely to have. They will never be as well-insulated as a passive house wall though, so it is crucial to design glazing carefully: overdoing it quickly blows the financial and energy budgets, and risks summer overheating too.

“We’ve used a few ground rules for window design: keep things simple, minimise mullions [the vertical bars between panes of glass], have opening lights only where needed, keep sizes to sensible dimensions, and provide adequate shading.”

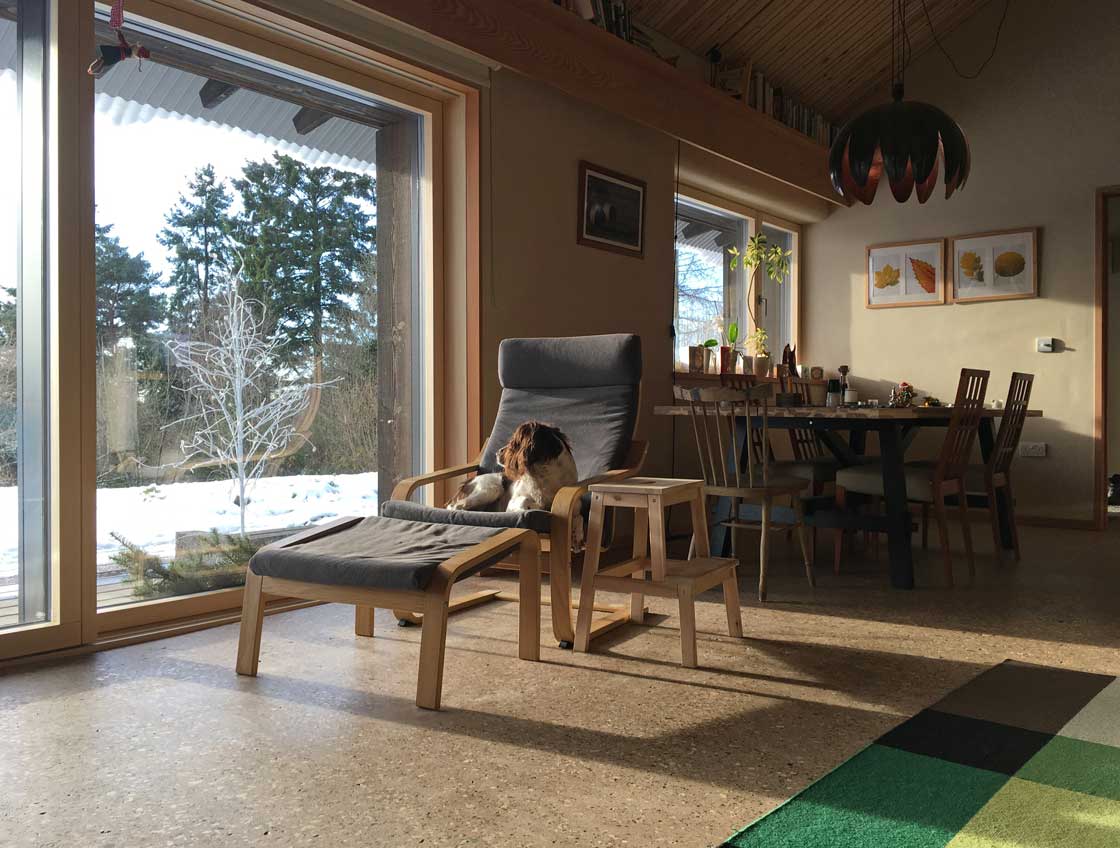

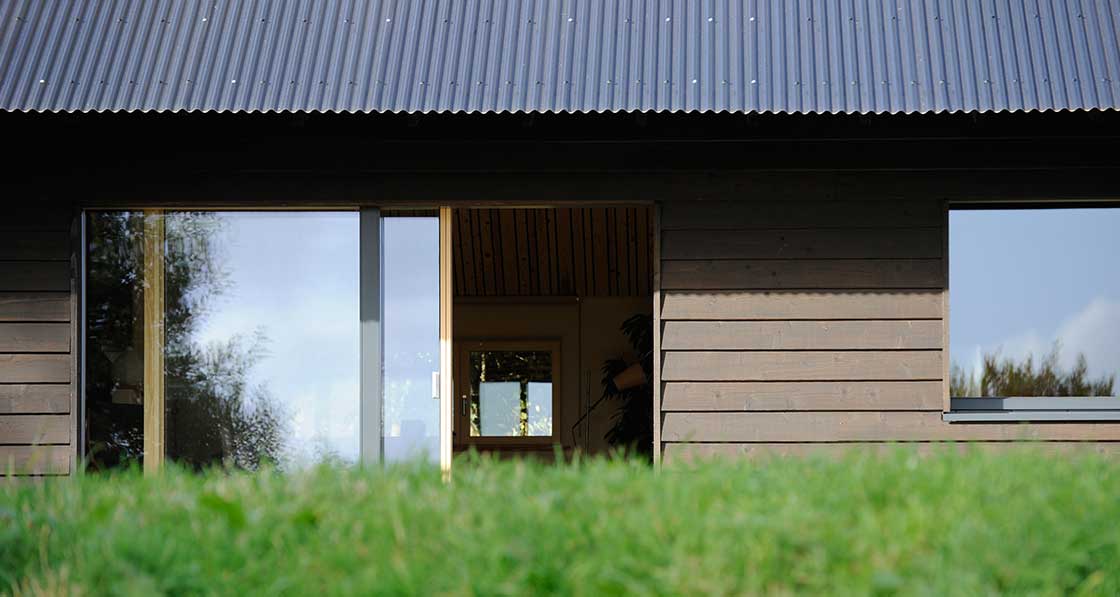

Nonetheless, Juraj and Joyce could not resist including large sliding glass doors in the main living area. “Luckily we were able to orientate the house facing perfect due south, which allowed us to design in shading relatively easily, while enjoying a lot of solar gains in winter.”

The large roof overhang along the south of the house provides simple and effective shading without any need for blinds, and it extends the usable living space too. “Great for informal sitting, chilling and eating,” Juraj says.

The one south window that is not shaded by the roof has an integral external roller blind. The windows also have deep reveals to cut ‘sideways’ solar gain during summer mornings and evenings, while east and west windows also have manually operated roller blinds.

The clay plaster and Fermacell-lined partitions mean that despite the timber and straw, the house is not a lightweight construction, and these heavier building elements provide thermal mass that can help to smooth out internal temperatures by absorbing heat and releasing it slowly.

But the majority of the thermal buffering is provided by the exposed slab: “We chose to use a concrete slab as the base for our house for a couple of reasons: once ground down, it would provide a durable finished floor surface, and it would provide useful thermal mass in an otherwise medium density construction.”

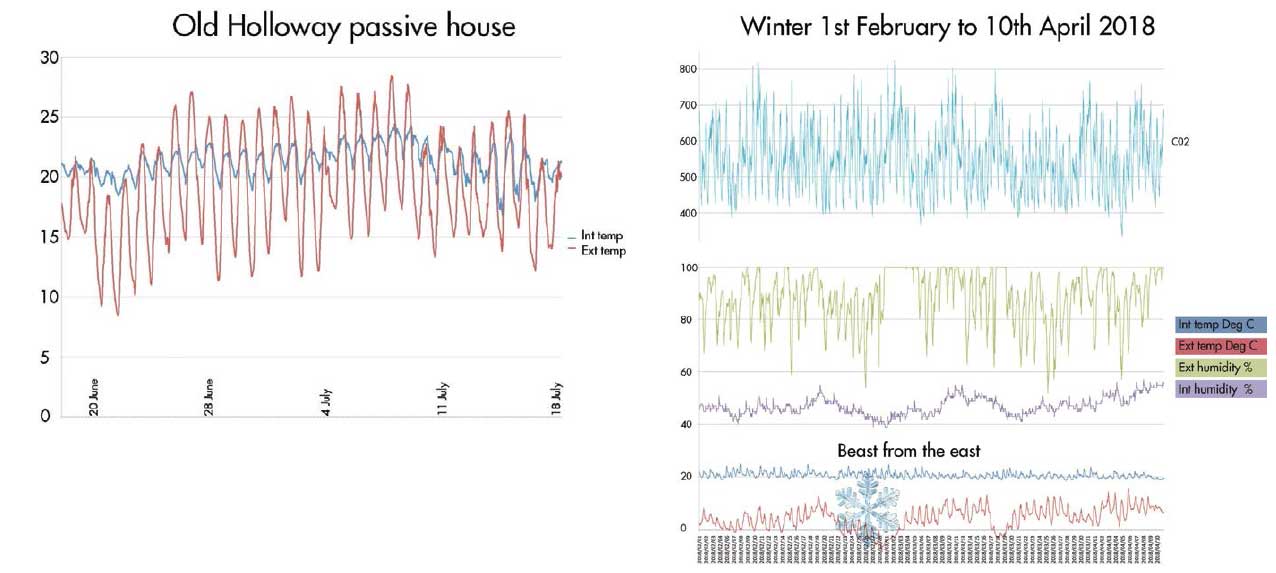

The exposed concrete helps to moderate daytime peaks, but as Juraj points out, withthermal mass, adequate provision for ‘night purging’ is essential to ensure heat does not build up. He can achieve this by opening all windows at night, providing good cross ventilation.

Metal mesh fly screens over the bedroom windows enable night ventilation without insects getting in — and also add privacy and cut out some solar gain during the day. This works so well that Juraj and Joyce have retrofitted similar screens to other windows.

Wood-burning stove

Ecococon is a screw-together modular system, comprising wooden frames densely packed with straw.

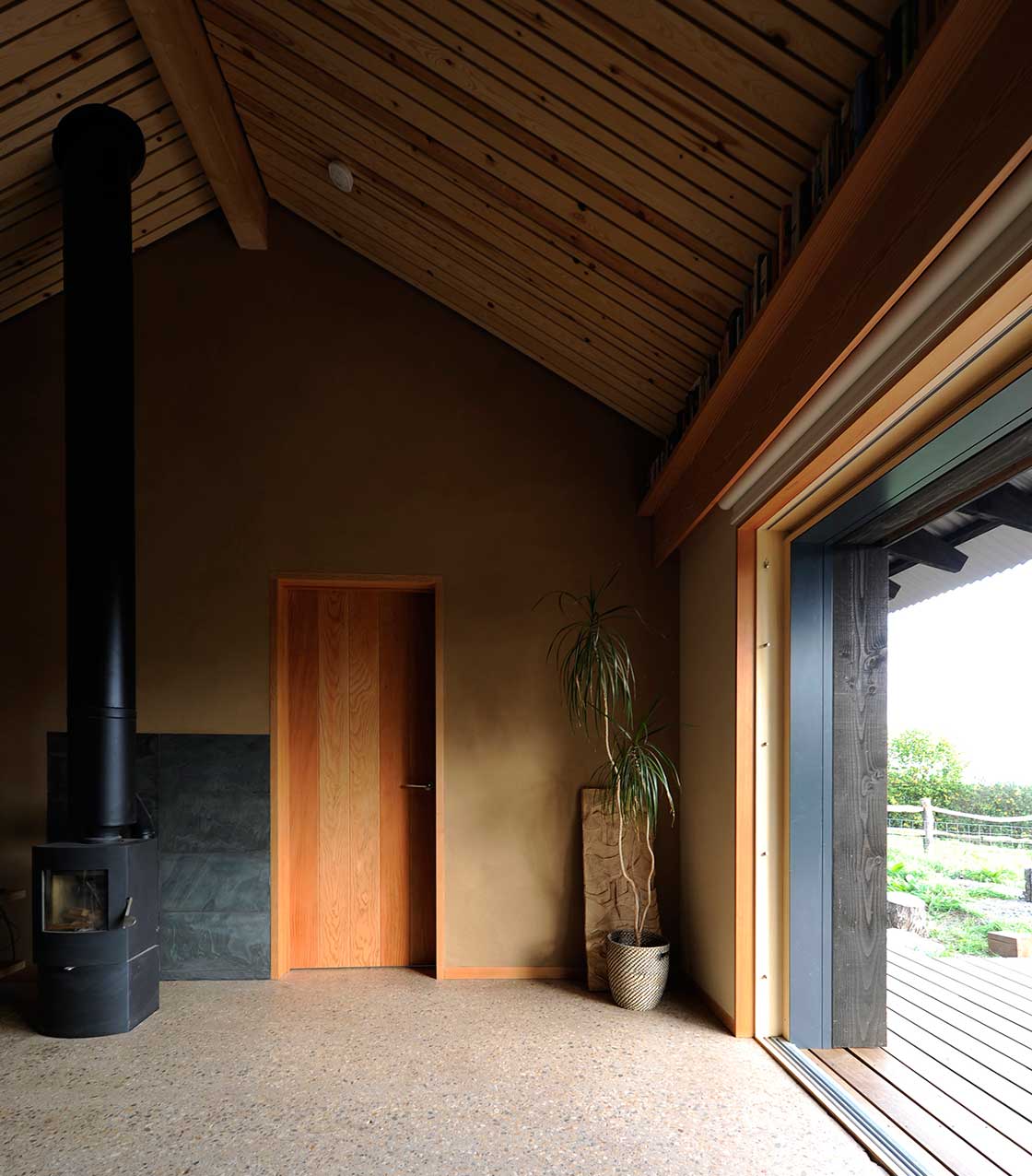

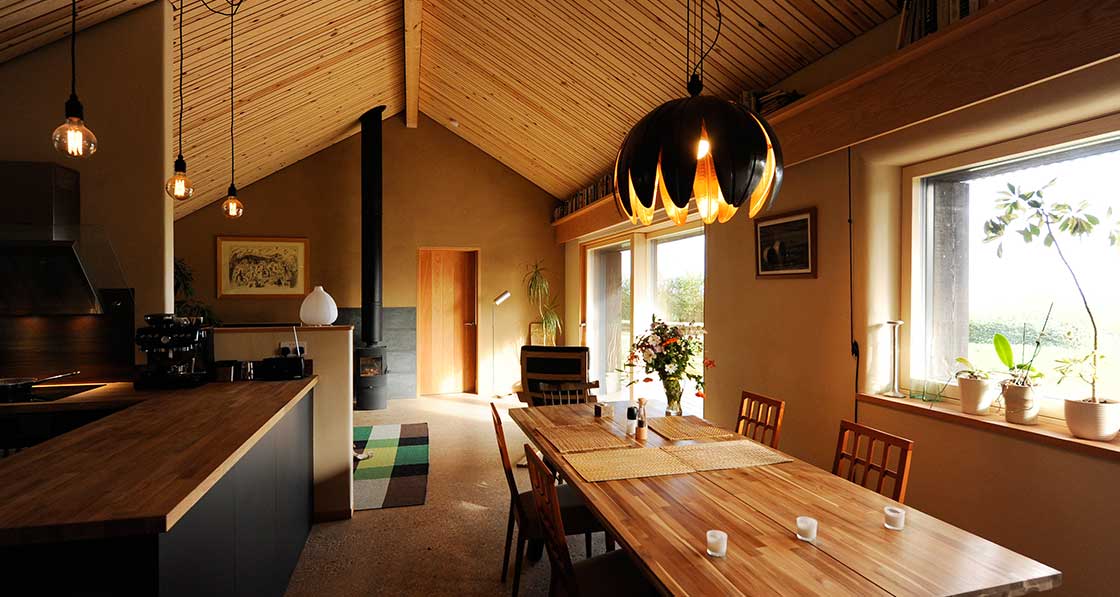

Not much space heating is required, and most is provided by a small 4kW wood-burning stove in the main living space – something Juraj wanted to indulge in, despite the inevitable extra fiddle of installing a stove in an airtight building (eased here by using a single flue with separate, in and out channels like the balanced flue for a gas boiler). The stove heats the house directly – there is no back boiler or underfloor heating.

Top-up space heating — to bathroom towel rails only — and hot water is supplied by an Ariston 200L hot water cylinder that is heated by an integrated air source heat pump. The heat pump runs for about a third of the time in winter, much less in summer, and is quiet, with a hum similar to a fridge. The Zehnder ComfoAir160 heat recovery ventilation system is also pretty much inaudible.

The build

The main contractor on the project was legendary local builder and passive house specialist Mike Whitfield. The Ecococon system was a first for Mike, who generally builds his own timber frame structures on site, but he was happy to give something new a go here.

Juraj was impressed by the speed of construction. “It took us only three days to assemble all the external walls, two internal load bearing walls and the main glulam ridge beam,” he says. Everything fitted perfectly, Juraj says, and the building was watertight in just four weeks.

Nevertheless in the short period at the start before the roof and external sheathing went on, the structure was very vulnerable to any rain, making those weeks “a bit hairy”, as Mike put it. The structure had to be kept meticulously covered. In one small spot the wrapping must have failed, as Juraj later found that a patch of straw had sprouted, and had to be removed and replaced with cellulose insulation.

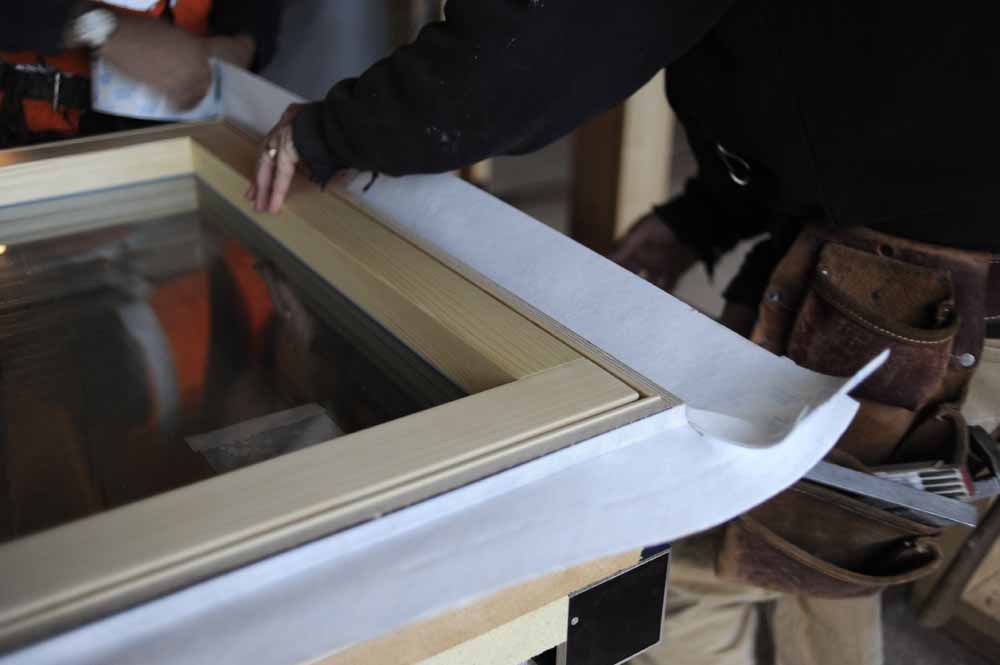

• Airtightness tapes pre-fitted on Smartwin passive house certified timber windows Airtightness tapes pre-fitted on Smartwin passive house certified timber windows

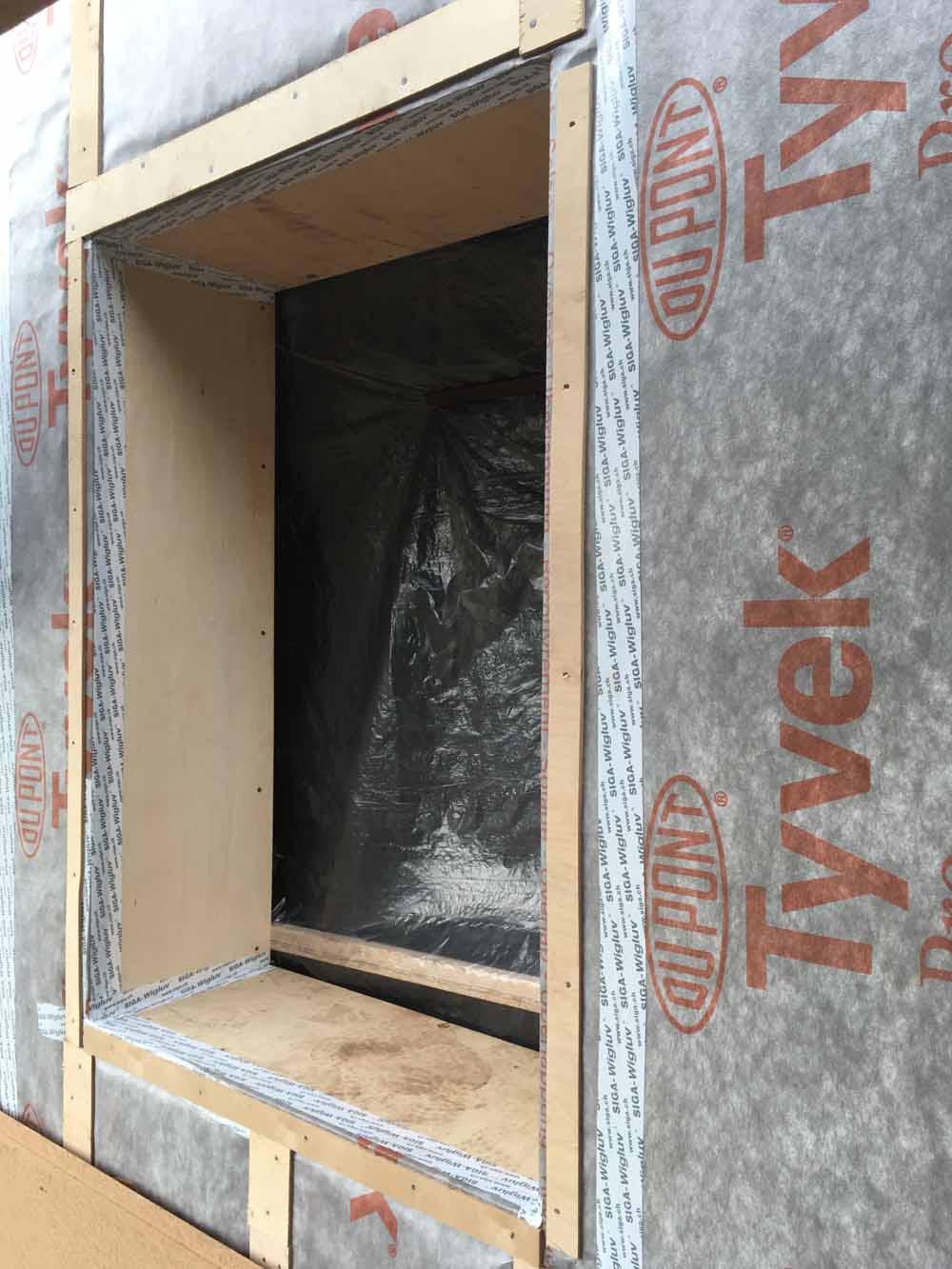

• Plywood box window reveals Plywood box window reveals

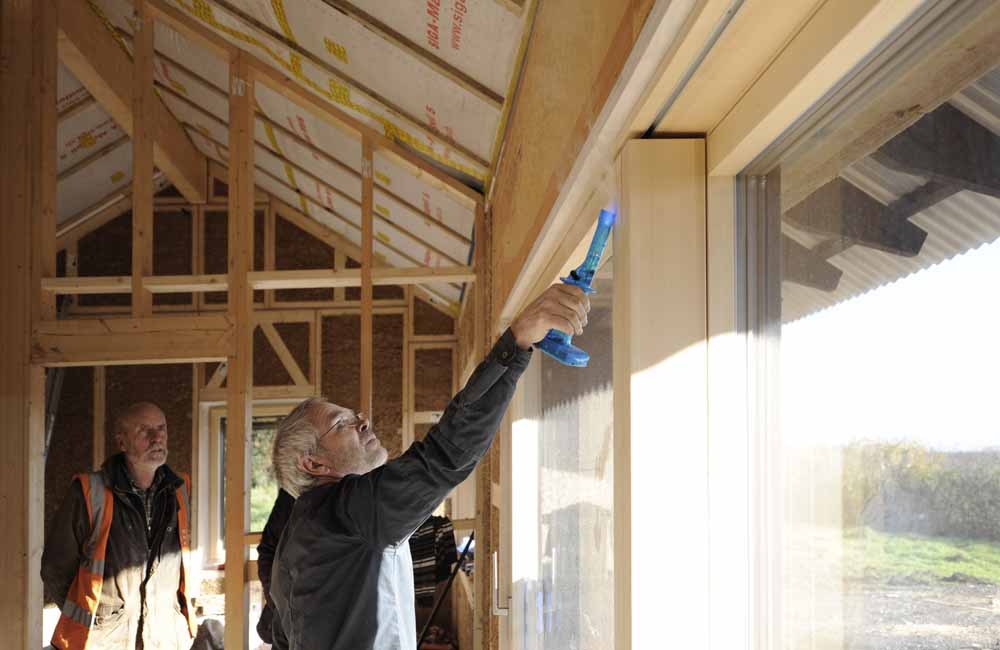

• Energy consultant Nick Grant uses a smoke pencil to look for air leakages around the windows Energy consultant Nick Grant uses a smoke pencil to look for air leakages around the windows
•

The modular system was easier to handle than full-sized timber panels would have been – the biggest section weighed around 120kg (this was less than half the weight of the glass sliding doors, which had to be unloaded at a nearby industrial estate). Most of the panels weighed around 60-70kg, so were relatively easy to move. The combination of a modular system and single-storey construction thus averted the need for lifting equipment. Given that access was tight, this was a great advantage.

Mike’s reputation for meticulous detailing was borne out with the airtightness result of 0.38 air changes per hour. “Bearing in mind the unfavourable form factor, and the fact that we used mainly membranes for airtightness – and fitted a wood stove – we were really pleased. It really is a credit to the whole Mike Whitfield building team,” Juraj says.

Natural finishes

The use of low toxicity, natural materials was very important to Juraj and Joyce, and they have put together a relatively small number of lovely materials, to great effect.

On the outside of the house, the charred finish was something Juraj had always wanted to try, but never persuaded a client to specify. The locally-sourced cedar cladding was all charred on-site with a blowtorch, by Juraj and a couple of friends to give a pleasing, slightly-textured, and highly durable finish.

Of course many designers enjoy the chance to be truly hands-on, and Juraj made the absolute most of the opportunity.

Inside, the main labour of love was the polished concrete slab – ground by Juraj over an uncountable number of hours. But the beauty of the innumerable colours of the stones shining through the sealed finish is unarguable.

Also very hands-on was the clay plastering. Juraj got the chance to work alongside an expert, Roman Miškov from Slovakia, and the two of them completed the plastering together. The clay is mixed with natural pigments to give several soft, earthy colours – and for some of the walls, the finish included chopped straw, which adds a lovely hint of sparkle when the light catches it.

Above the main living area, the cathedral ceiling is softened with a pattern of untreated redwood battens, which also help with acoustics. And apart from the insulation under the slab, and the seal on its surface, very few petrochemical products were used in this build.

The clay plasters are either left natural or finished with natural pigments. Exposed timber is oiled with Osmo oil, and Auro paints were used on plasterboard ceilings – both these product ranges are mainly plant-based, or use natural products such as milk casein.

Wonderful - but how affordable?

As well as quite a bit of hands-on involvement with the build, a lot of time was spent creating the very particular finishes — the clay plaster, charred wood and polished concrete — making it very much Juraj and Joyce’s house.

The construction costs have been totted up by Juraj as coming to £150,000 (£135,000 after a VAT refund, as they were self-builders) for a 99 square metre house. It’s always tricky to compare costs across projects, but with its simple, modest form, a passive house build of similar design realised via more familiar construction methods, for a client who did not want to get so involved on site, should be at least as affordable.

So many self-build projects run away with themselves and end up larger, and therefore more expensive than really makes sense. “My top tip to self-builders is: re-evaluate how much space you actually need,” Juraj says. The smaller the build, the more detailed control you will have, and the more budget you’ll have left to spend on the best components, on beautiful finishes – or indeed, on just enjoying life in your new home.

Image gallery

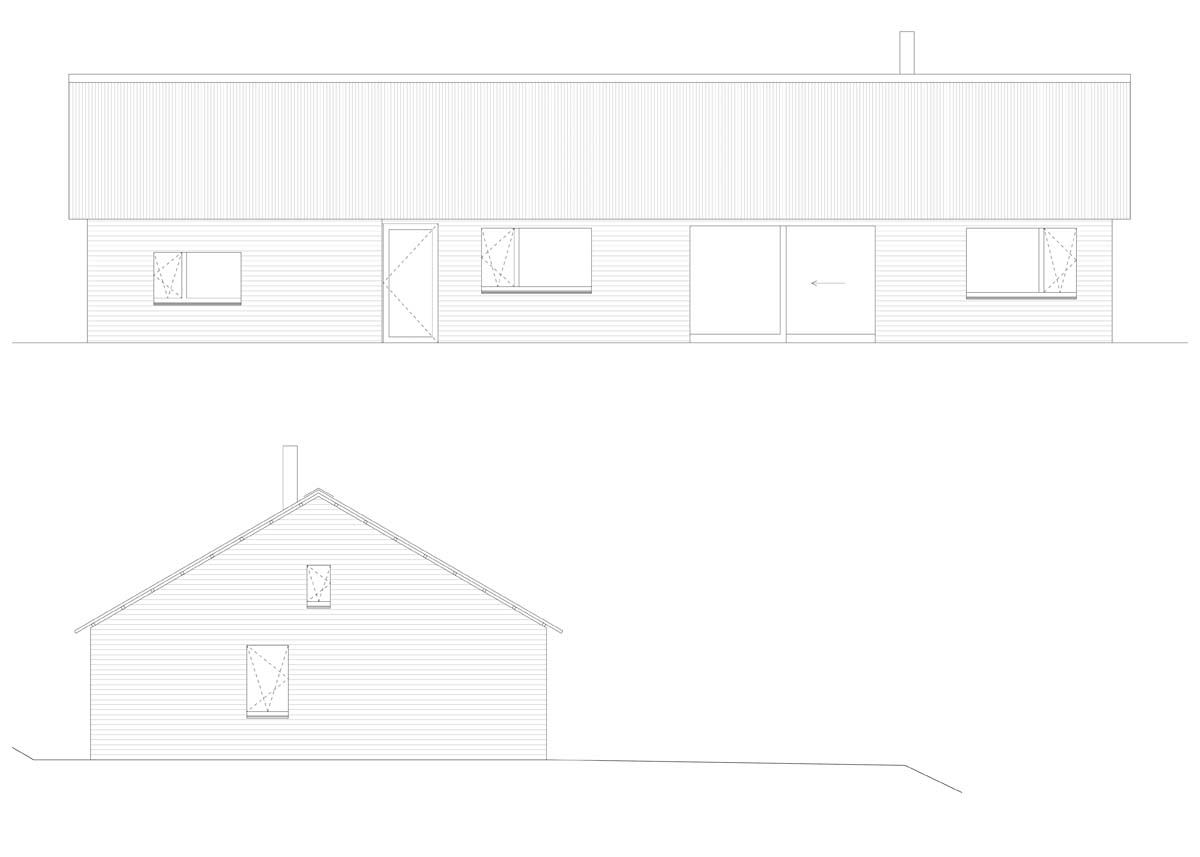

• South west elevations South west elevations

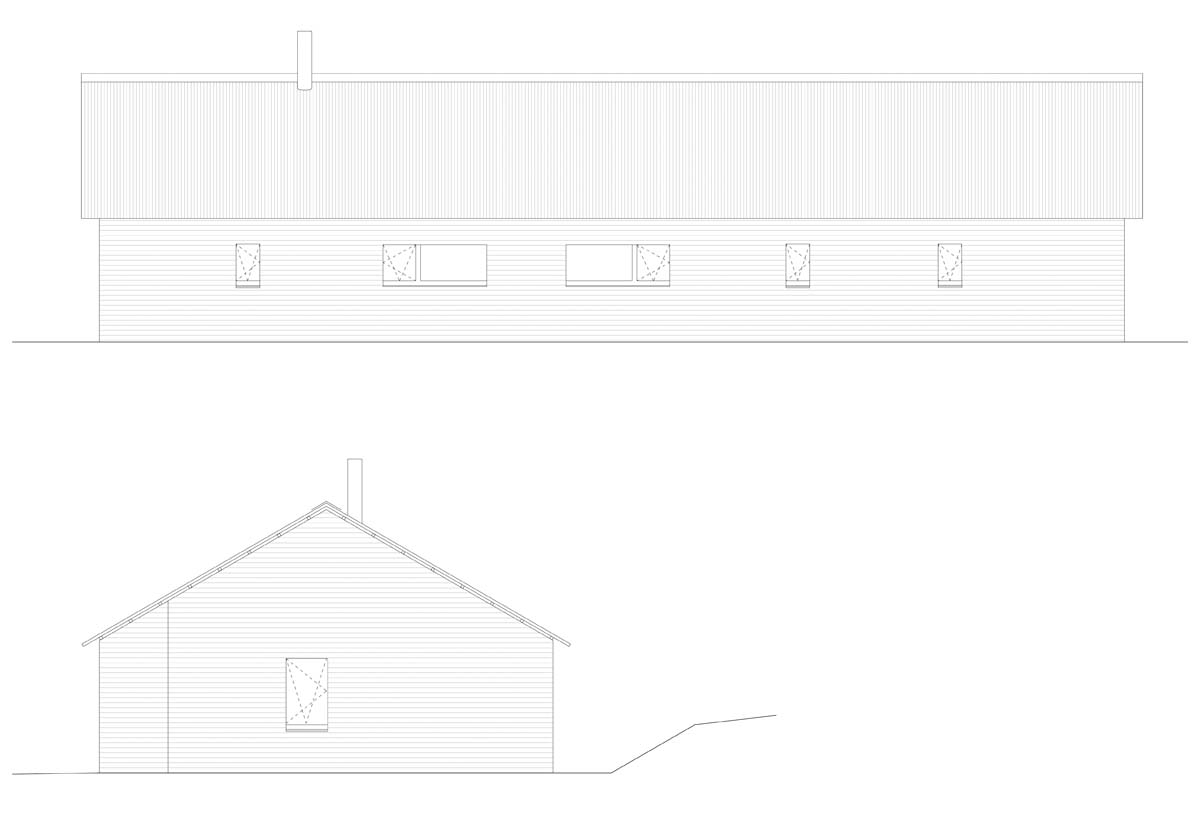

• North east elevations North east elevations

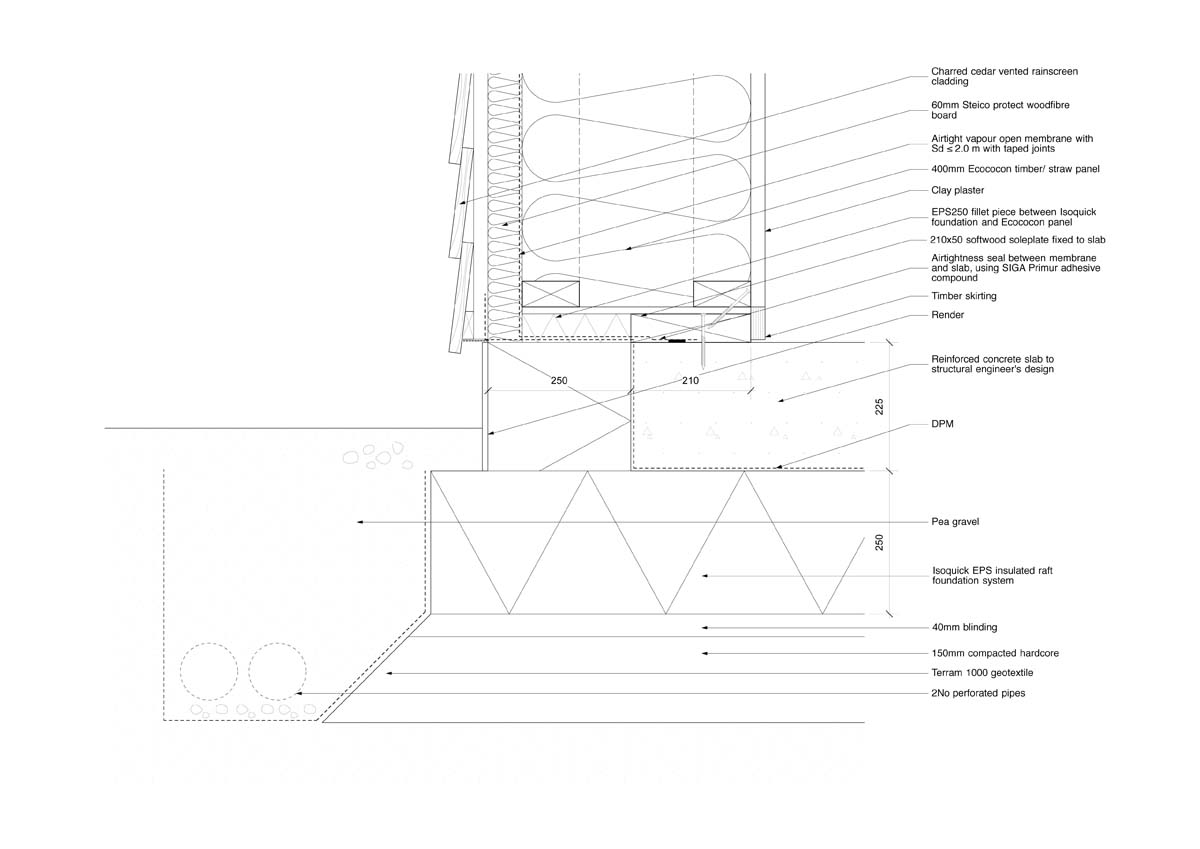

• Foundation detail Foundation detail

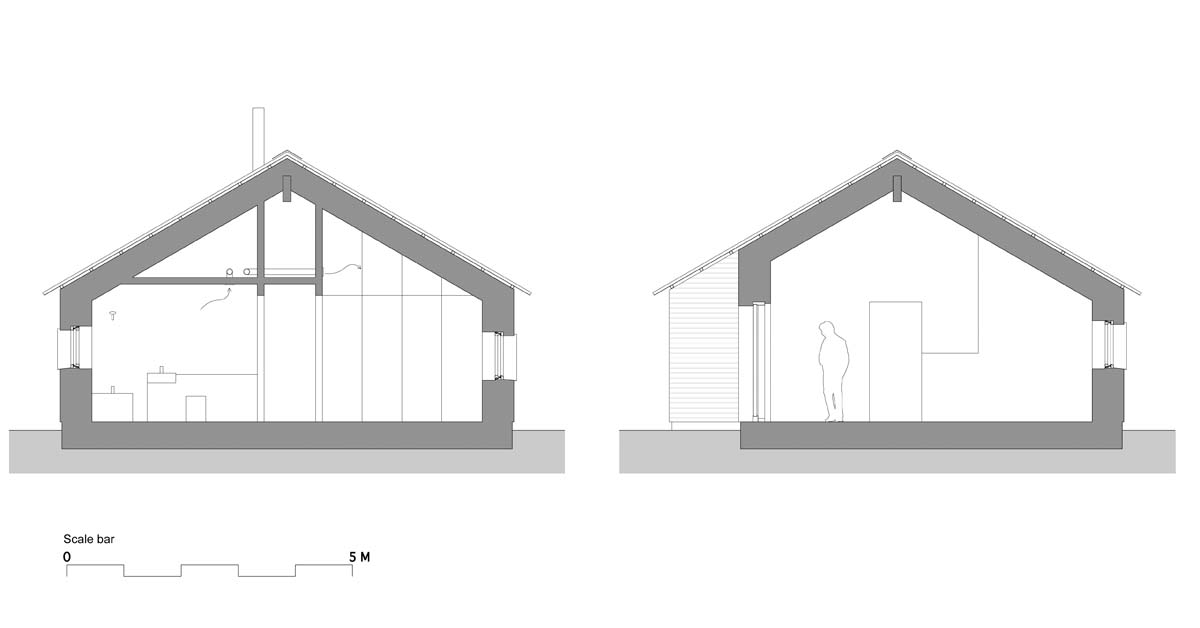

• Sections Sections

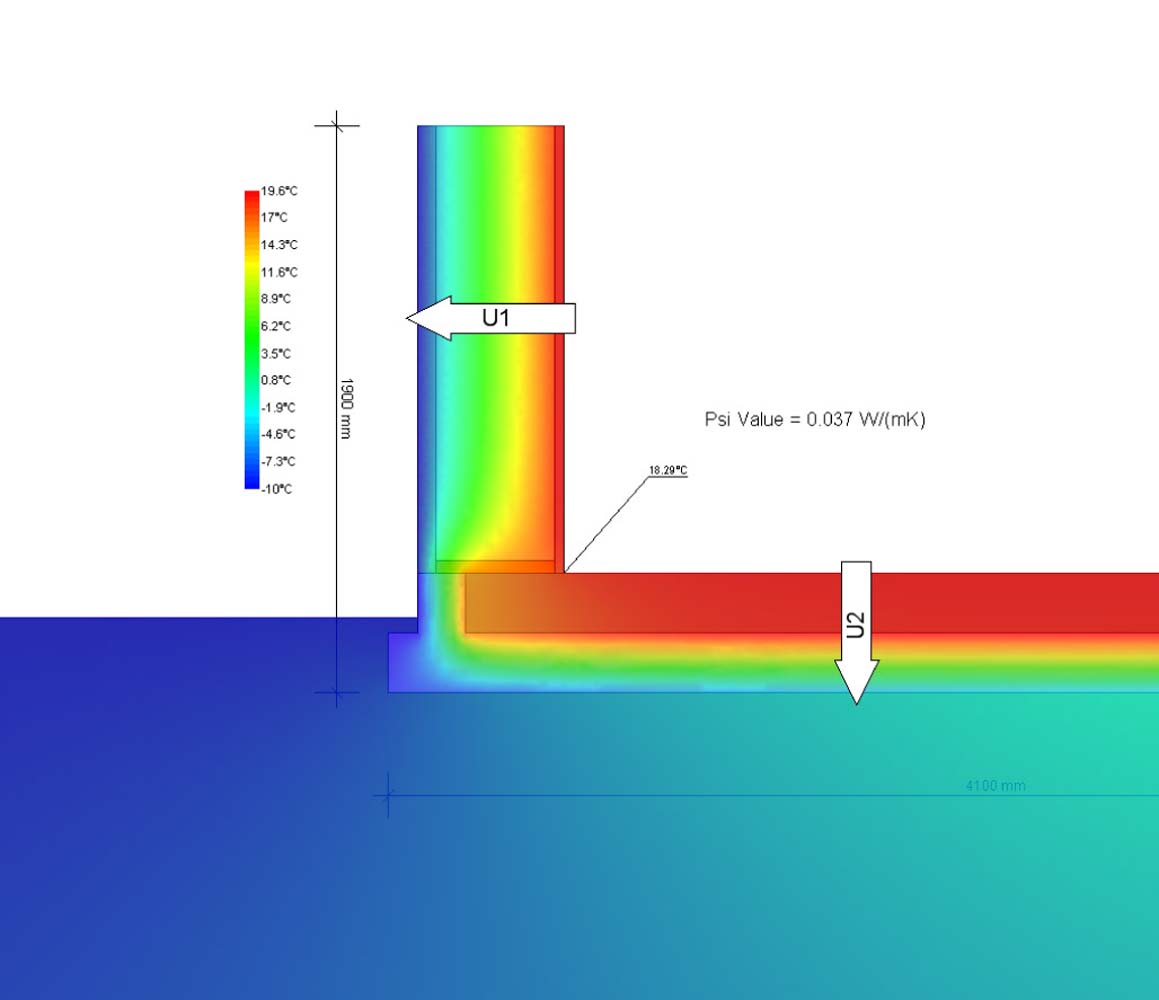

• Slab edge Psi calculation Slab edge Psi calculation

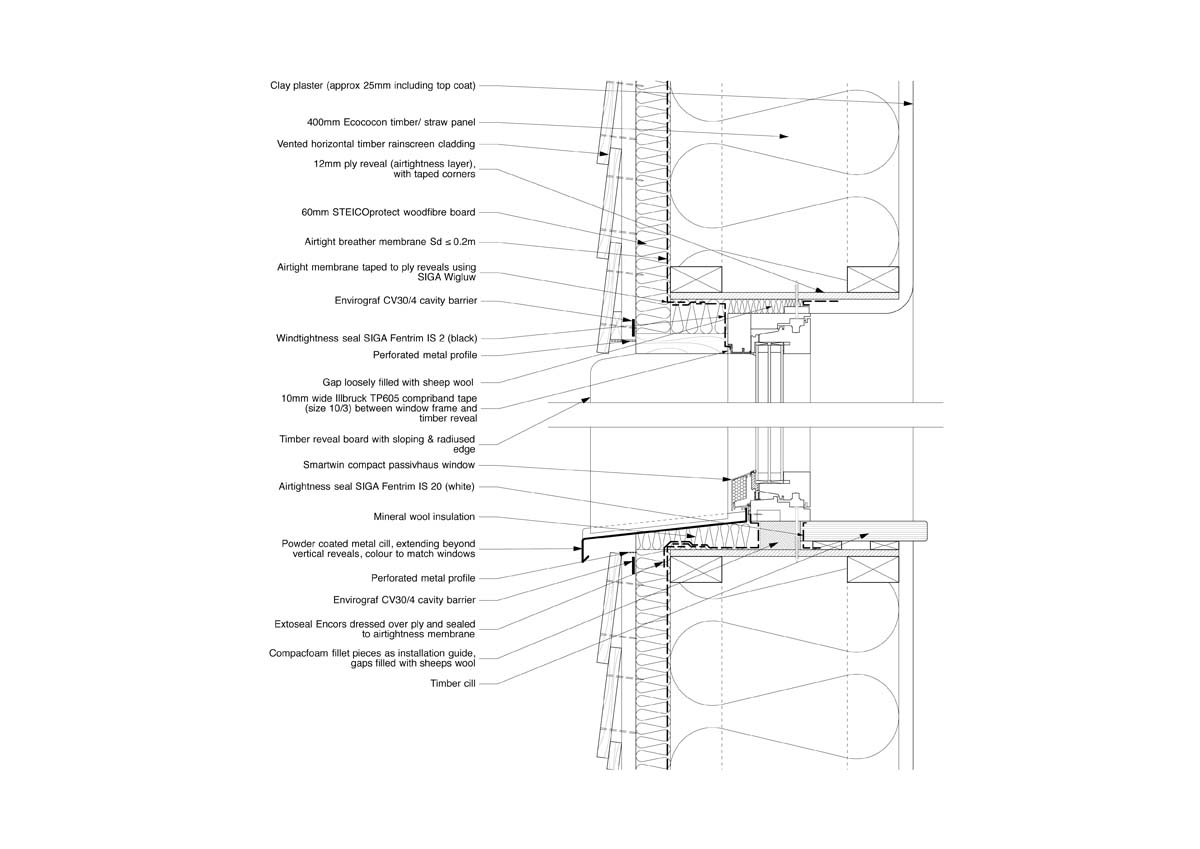

• Window cill head details Window cill head details
•
